In electronics manufacturing, PV lamination, and explosive environments, static discharge is a serious risk. A spark can destroy a microchip, ignite dust, or cause equipment malfunction. PTFE high-temperature fabric, while excellent for heat resistance and non-stick, is an excellent insulator – it stores static charge rather than dissipating it.
The solution is anti-static treatment. Aokai PTFE offers anti-static PTFE fabric using two primary methods, plus a supplementary surface coating. This article explains why PTFE fabric needs anti-static treatment, how the treatments work, and the principles behind static dissipation.
PTFE high-temperature fabric is fiberglass cloth impregnated with polytetrafluoroethylene (PTFE), which acts as an excellent insulator with ultra-high surface resistance (typically 10⊃1;⁵–10⊃1;⁸ Ω). Friction and peeling during production, conveying, and demolding readily generate and accumulate static electricity.
Risks of static accumulation:
Sparks – can ignite flammable gases, dust, or solvents
Electronic component damage – ESD destroys microchips and PCBs
Material cling – films, fibers, and powders stick to surfaces
Operator shocks – safety hazard and discomfort
Therefore, special treatments are required to endow the fabric with static dissipative or conductive properties for safe deployment in anti-static working environments.
This is currently the most mainstream treatment, delivering uniform anti-static performance across the entire fabric surface.
1. Process
A specific proportion of conductive fillers is blended evenly into PTFE impregnating liquid, followed by standard impregnation, drying, and sintering procedures. The fillers become embedded throughout the PTFE coating, forming a conductive network.
2. Common conductive fillers
Conductive carbon black (most common, cost-effective)
Uniform performance – consistent anti-static effect across the whole fabric surface
Weave-independent – unaffected by the weave structure of fiberglass substrate
Balances three core features – high-temperature resistance, non-stick property, and static dissipation
Permanent – not a surface coating; does not wear off
4. Performance outcome
After treatment, the surface resistivity of the fabric can be stably controlled within 10⁵–10⁹ Ω, meeting the anti-static requirements of most industrial scenarios (electronics, explosive environments, PV).

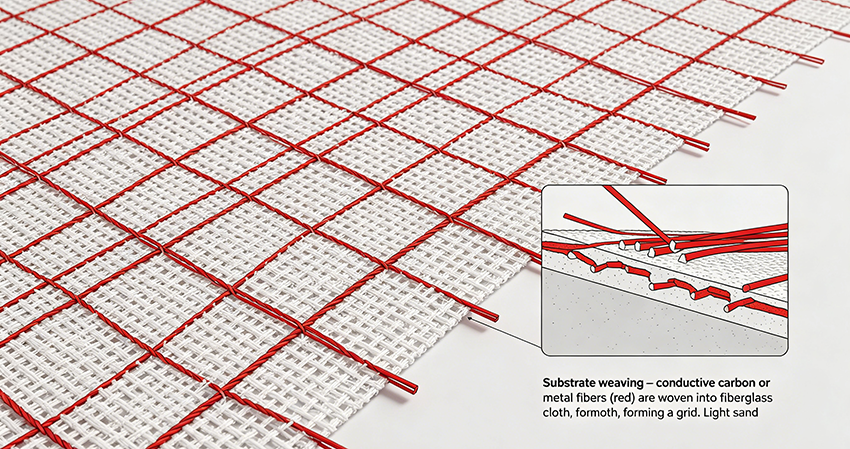

Alternative Method – Substrate Weaving: Embed Conductive Fibers into Fiberglass Cloth
Conductive filaments (metal wires, carbon fibers, etc.) are woven into fiberglass substrate at fixed intervals to form an embedded conductive grid before PTFE coating application.
1. Key processing consideration
The PTFE coating may fully encapsulate conductive fibers and insulate conductive pathways. Therefore, buffing or sanding is usually applied to slightly expose conductive fibers on the fabric surface, or grounding contact areas are reserved free of full coating coverage.
2. Advantages
Conductive paths constructed by metal or carbon fibers have strong current-carrying capacity
Ideal for working conditions requiring rapid drainage of large static charges
Provides a physical ground path independent of the coating
3. Disadvantages
More expensive than coating doping
Exposed fibers may affect surface smoothness
More complex manufacturing process
Supplementary Method – Surface Coating (Rarely Used for High-Temperature Scenarios)
A thin layer of organic anti-static agent is coated onto finished PTFE fabric.
1. Advantages
Simple to operate
Low cost for small-scale applications
2. Disadvantages (why not mainstream)
Most anti-static agents are surfactants with poor heat resistance (typically <150°C)
Prone to abrasion shedding and performance failure under long-term high-temperature exposure
Not permanent – wears off with use, cleaning, or heat
Conclusion: This method is not recommended for high-temperature PTFE fabric applications. If you need anti-static PTFE fabric, choose coating doping or substrate weaving.
Core Anti-Static Working Principle
All above methods share the fundamental mechanism: establishing a controlled leakage channel for static charges to drain instantly upon generation and prevent hazardous charge accumulation.

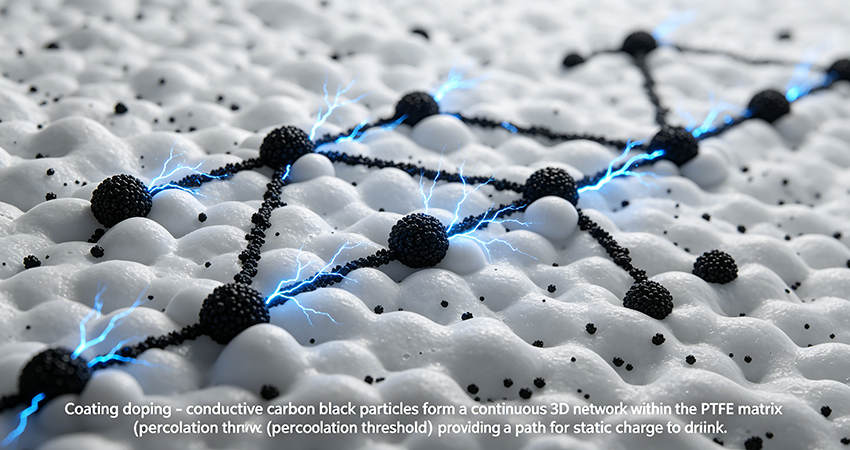

1. Formation of conductive network (percolation threshold)
When conductive fillers (such as carbon black particles) reach a critical concentration in the PTFE coating, particles come into contact or stay closely adjacent to form a continuous 3D conductive network. This is defined as the percolation threshold. This conductive grid transforms the insulating characteristic of pure PTFE.
2. Charge conduction and dissipation
Static electricity generated by surface friction no longer accumulates locally in isolation. Instead, charges spread rapidly along the conductive network and drain safely via grounding – equivalent to connecting a properly sized discharge pipeline to the “charge storage pool.”
3. Precise regulation of surface resistance
By adjusting the dosage of conductive fillers, surface resistance is stabilized within the anti-static range (10⁵–10⊃1;⊃1; Ω). This resistance value is:
Low enough to drain static efficiently
High enough to avoid direct short circuits and potential hazards
Enables controlled consumption of static charges via material resistance
Critical requirement: Reliable grounding is still mandatory during practical use. The anti-static fabric provides the path, but grounding completes the circuit.
Summary – Choosing the Right Anti-Static PTFE Fabric
Method
Surface Resistivity
Durability
Heat Resistance
Best For
Coating doping
10⁵–10⁹ Ω
Excellent (permanent)
Up to 260°C
General industrial, electronics, PV
Substrate weaving
10⁵–10⁹ Ω
Excellent (permanent)
Up to 260°C
High-current static drainage, heavy grounding
Surface coating
10⁶–10⁹ Ω
Poor (wears off)
Typically <150°C
Low-temperature, short-term use (not recommended)
Aokai PTFE offers anti-static PTFE fabric using the coating doping method as standard, with substrate weaving available for specialized applications. We can target specific surface resistivity (e.g., 10⁶ Ω, 10⁸ Ω) based on your requirements. Contact us for technical data sheets and samples.
