High-strength PTFE high-temperature fabric is a high-performance composite material made by impregnating or coating polytetrafluoroethylene (PTFE) onto high-tenacity fiberglass fabric. It inherits the outstanding tensile strength of fiberglass while integrating PTFE’s superior properties: wide temperature resistance (-70°C to 260°C), non-stick surface, chemical corrosion resistance, and electrical insulation.
This combination makes it a critical material across a remarkably wide range of industries – from food baking to aerospace.
Aokai PTFE manufactures high-strength PTFE fabric in various thicknesses and weaves. This guide covers eight major application fields, from industrial conveying and architectural membranes to PV lamination and chemical anti-corrosion.
Industrial Conveying and Transport – The Core Application
High-strength PTFE fabric is fabricated into conveyor belts for demanding production lines across multiple industries.
Industry
Application
Key Benefit

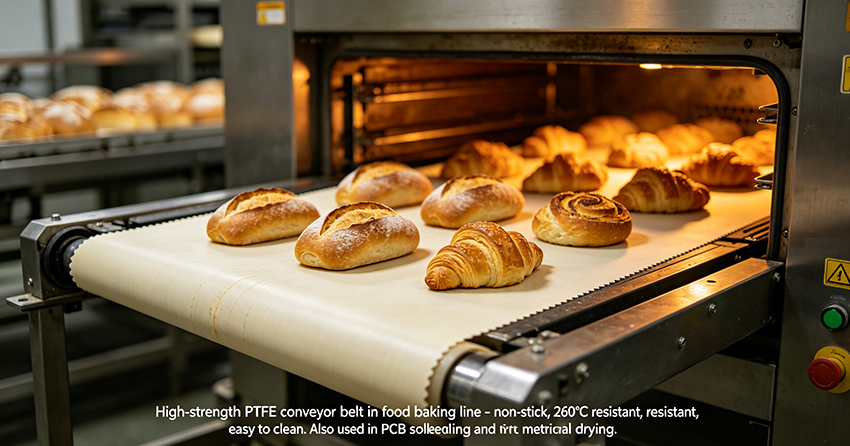

Food processing
Baking, drying, and freezing lines – demolding conveyor belts for biscuits, bread, and pastries
Food-grade, non-stick, easy cleaning
Textile printing & dyeing
Conveyor belts for drying and heat setting
Withstands high temperatures, no adhesion to dyes or sizing agents
Packaging & printing
Belts for plastic bag heat sealers and shrink wrapping machines
Stable heat resistance, anti-sticking
Electronics manufacturing
Transport trays for PCB drying and wave soldering
Suitable for lead-free soldering (high-temp)
Why high strength matters: In wide conveyor belts (up to 3-4 meters), the fabric must resist stretching and maintain tension across the full width. High-strength fiberglass provides this stability.
Welding and Heat Sealing Protection
High-strength PTFE fabric is widely used as a heat-resistant, non-stick isolation material under high-temperature, high-pressure welding conditions.
1. Heat sealer covers and release liners
Used as thermal insulation and release liner in high-frequency, ultrasonic, and hot plate welding machines – prevents adhesion between workpieces and heating plates.
Covered on heat sealer sealing strips to extend equipment service life and guarantee smooth sealing edges.
2. Welding fire protection
Processed into protective curtains and tarpaulins against welding spatter.
High tensile strength delivers excellent tear resistance and long service life – even in busy fabrication shops.
Demolding and Hot Press Forming
PTFE’s excellent non-stick property and high pressure resistance make it an ideal release material.
Application
Use Case
Benefit
Rubber, plastic & composite molding
Demolding cloth for plate vulcanizers and laminators
Eliminates need for release agents, flawless surfaces
Shoe & luggage manufacturing
Seamless bonding cushion cloth for hot press shaping
Withstands repeated heavy compression
Photovoltaic industry
High-temperature lamination cloth for solar cell encapsulation
Prevents overflowed EVA film from adhering to laminator platens
Electrical Insulation – Class H Rated
High-strength PTFE fabric is classified as Class H insulation material (180°C continuous service temperature, with short-term capability much higher).
Motor and transformer insulation: Slot insulation, phase separation, and coil wrapping.
Cable insulation: Wrapping layers for high-temperature cables in industrial and aerospace applications.
Electric heating devices: Insulation gaskets and thermal barriers.
Key properties: High dielectric strength, low dielectric constant (2.0-2.1), and excellent thermal stability.

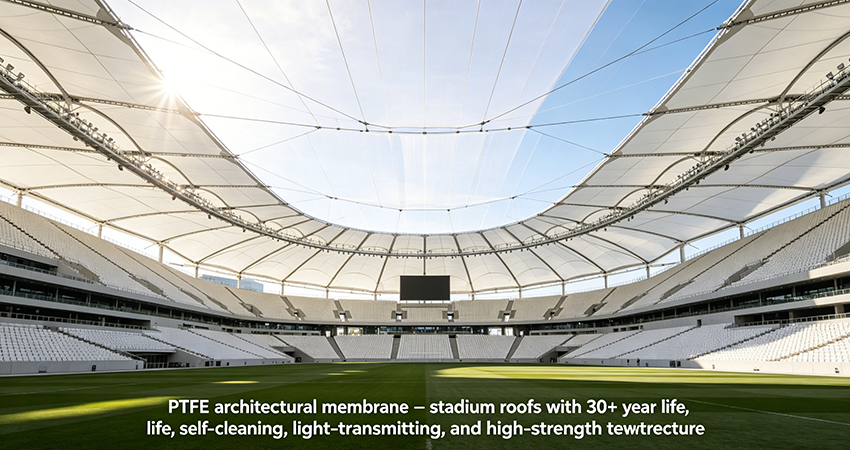

Architectural Membrane Structures – Stadiums and Airports
This field fully leverages the high-strength characteristic of PTFE fabric.
Permanent architectural roofing materials for large public buildings – stadiums, airports, exhibition centers.
Fabricated into tensioned PTFE membrane materials with:
Ultra-high tensile strength – spans large distances without structural steel.
Light weight – reduces building load.
Self-cleaning ability – rain washes away dust.
Light transmittance – diffuses natural light.
Service life – over 30 years.
Iconic projects: Beijing National Stadium (Bird's Nest inner membrane), Shanghai Stadium, and many international airport terminals.
Chemical Anti-Corrosion and Expansion Joints
Utilizing PTFE’s exceptional chemical inertness, high-strength PTFE fabric is manufactured into flexible connections and compensators.
Non-metallic expansion joints (compensators) for chemical pipelines – absorb thermal expansion and contraction, resist strong acids and alkalis.
Flexible sealing connections and anti-corrosion cladding for storage tanks and reaction kettles.
Duct liners for flue gas desulfurization systems in power plants.
Why high strength matters: Expansion joints experience pressure cycles and movement. The fabric must hold its integrity under repeated flexing and internal pressure.
Aerospace and Military Industries – Extreme Conditions
High-strength PTFE fabric performs under the most demanding operating conditions.
Thermal insulation blankets for aircraft engines and spacecraft.
Protective covers and cable sheaths – lightweight, heat-resistant, and non-flammable.
Ablation-resistant throat liners and thermal shielding components for missiles and rockets.
Key properties: High strength-to-weight ratio, 260°C continuous heat resistance, and chemical inertness.
Other Special Applications
High-strength PTFE fabric also serves in emerging and specialized applications:
Application
Use
Benefit
Laser cutting & engraving
Worktable protective cloth
Prevents workpiece burning and adhesion
3D printing
Non-stick surface for high-temperature print platforms
Reduces warping, easy part removal
High-end civilian products
Thermal insulation mats and baking tray liners
Safe, non-stick, durable
Summary – The Material of Choice for Demanding Environments
High-strength PTFE high-temperature fabric is nearly the optimal choice for working environments that require a combination of:
High tensile strength and tear resistance
Heat resistance (up to 260°C continuous, 300°C+ peak)
Non-stick, easy-clean surface
Chemical corrosion resistance
Electrical insulation
Long service life (architectural membranes 30+ years)
Aokai PTFE manufactures high-strength PTFE fabric with customized thickness, areal weight, and weaving specifications to match your specific application. From 0.08mm lightweight grades to 0.40mm heavy-duty versions, we have the right product.
Contact us to discuss your application – we can recommend the optimal grade and provide samples for testing.
