In the production of PTFE-impregnated fiberglass fabric, coating uniformity is not merely a cosmetic consideration – it is a core process indicator that determines product grade and application suitability. Even minor unevenness can trigger local failure during service, affecting everything from non-stick performance to electrical insulation and mechanical durability.
Understanding these impacts is essential for both manufacturers and specifiers of PTFE-coated fabrics.
Aokai PTFE has optimized coating uniformity across many product lines. This guide explains how uneven coating affects seven key performance areas.
Non-Stick and Release Properties – The Most Direct Impact
The core advantage of PTFE lies in its ultra-low surface energy and outstanding release performance. Uneven coating directly undermines this.
1. Local adhesion issues
Thin coating areas or bare spots with pinholes expose fiberglass or underlying resin. In applications such as food baking and tape die-cutting, sticky materials directly adhere to exposed glass fibers – resulting in difficult stripping, residual contaminants, and surface contamination of finished goods.

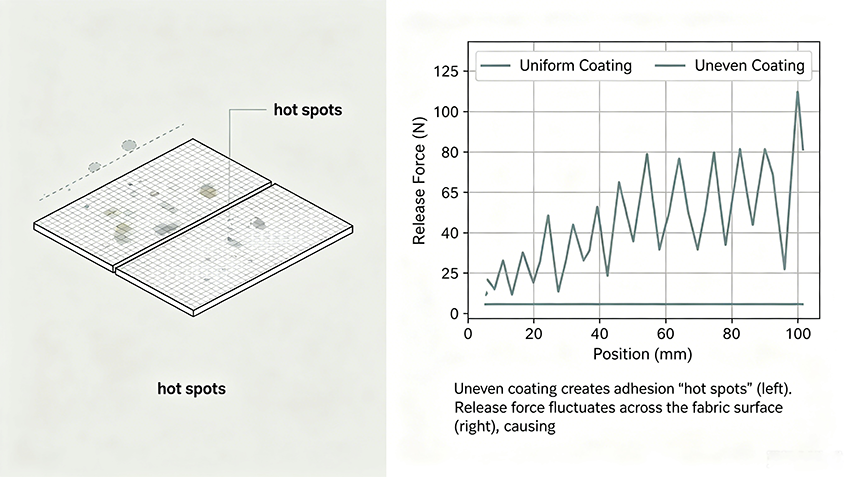

2. Uneven release force
Variations in coating thickness cause micro-fluctuations in surface energy. During precision die-cutting or demolding of high-viscosity materials, alternating sticky and slippery surfaces disrupt production continuity and lower finished product yield drastically.
Mechanical Properties and Service Durability – Stress Concentration at Thin Spots
Coating uniformity directly governs stress distribution and interlayer bonding.
1. Stress concentration leading to premature tearing
Boundaries between thick and thin coatings form mechanical weak points. Under repeated bending and stretching, stress cannot disperse evenly – cracks initiate and propagate preferentially at thin coating zones or pinholes, causing early rupture of the entire fabric.
2. Bridging and hollow erosion of fiberglass bundles
If PTFE emulsion fails to penetrate fully into fiber bundles and only forms a superficial film, the thin surface PTFE layer wears off rapidly under friction or tension. Unprotected exposed glass fibers fluff and fracture into broom-like damage, accompanied by sharp loss of tensile strength.
3. Low interlayer peel strength
For multi-layer laminated PTFE fiberglass cloth, uneven impregnation of intermediate layers leaves air voids and weak bonding interfaces – prone to delamination and blistering under hot pressing or long-term operation.
Electrical Insulation and Dielectric Properties – Fatal for Electronics
For PTFE fiberglass cloth used in high-frequency circuit boards, radar radomes, and insulating gaskets, inconsistent electrical performance leads to fatal malfunctions.

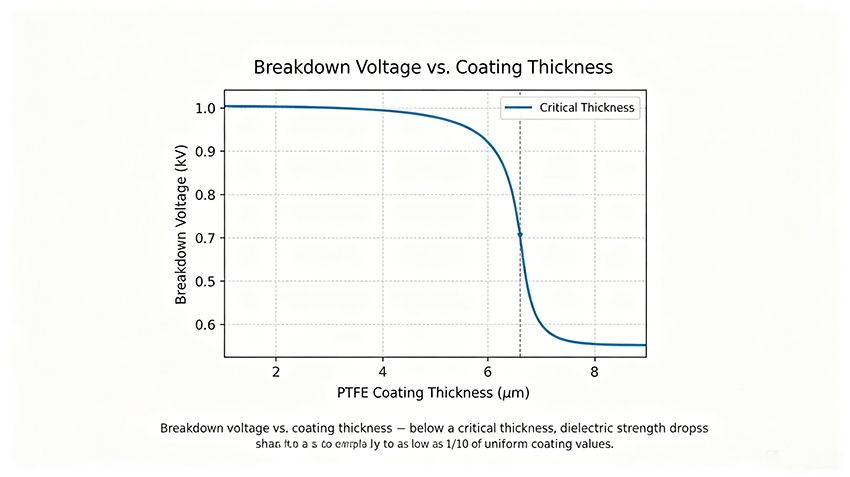

1. Sharp drop in breakdown voltage
Pinholes or locally insufficient coating thickness concentrate electric field intensity far beyond surrounding areas under high voltage, creating breakdown and short-circuit hotspots. The breakdown voltage of unevenly coated products may decline to only 1/10 of uniform-coated counterparts.
2. Irregular dielectric constant and dissipation factor
Tiny fluctuations in coating thickness and resin loading alter local dielectric parameters. In high-frequency signal transmission, such inconsistency induces signal delay deviation, impedance mismatch, and deteriorated standing wave ratio – unacceptable for 5G communication and high-speed digital circuits.
Heat Resistance and Dimensional Stability – Shrinkage Mismatch
Sintering defects and uneven thermal shrinkage stem from inconsistent resin coverage per unit area. At sintering temperatures around 380°C, thick and thin coating regions differ drastically in melting, flowing, and shrinking behaviors.
Severe fabric warpage and wavy edges
Local melt-shrinkage voids
Residual internal stress retained after cooling, triggering unpredictable deformation upon subsequent high-temperature exposure
Hotspot formation due to uneven thermal conductivity
When used as release mats for hot presses, subtle coating thickness differences create thermal resistance patches – leading to uneven heating of workpieces, incomplete curing, color difference, and inconsistent surface texture.
Chemical Barrier and Corrosion Resistance – Leakage Paths
Pinholes, cracks, and ultra-thin coating sections form direct penetration channels for corrosive gas and liquid media. Chemical agents infiltrate along the interface between fiberglass and PTFE resin via wicking effect, gradually destroying the composite structure from the inside out – causing large-area blistering, delamination, and complete product scrapping.
Surface Quality and Processing Precision – Downstream Defects
1. Out-of-tolerance flatness and thickness variation
High-end applications including solar laminators and FPC lamination demand micron-level thickness tolerance. Uneven coating generates thickness fluctuations that distribute lamination pressure irregularly – inducing hidden cracks on solar cells or micro-short circuits on circuit boards.

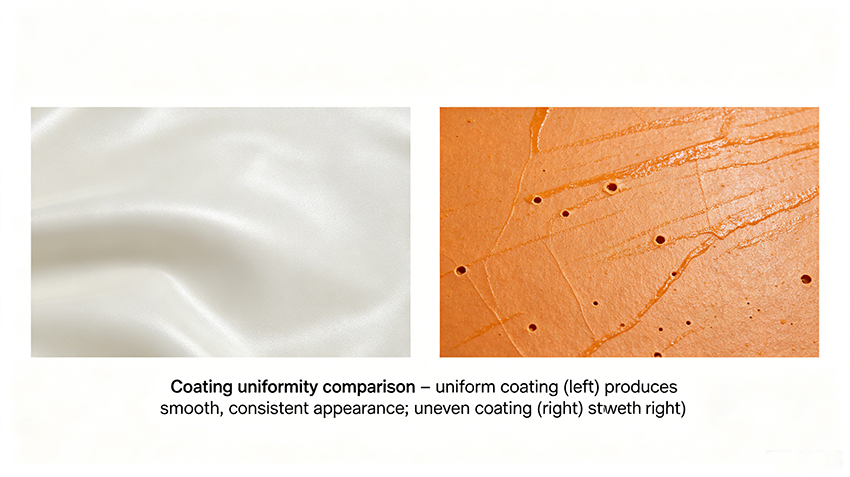

2. Surface texture transfer defects
Uneven coating produces orange peel, flow marks, and other surface flaws. When used as release liners, these imperfections transfer fully onto bonded workpieces such as carbon fiber panels and artificial leather – causing irreversible cosmetic defects.

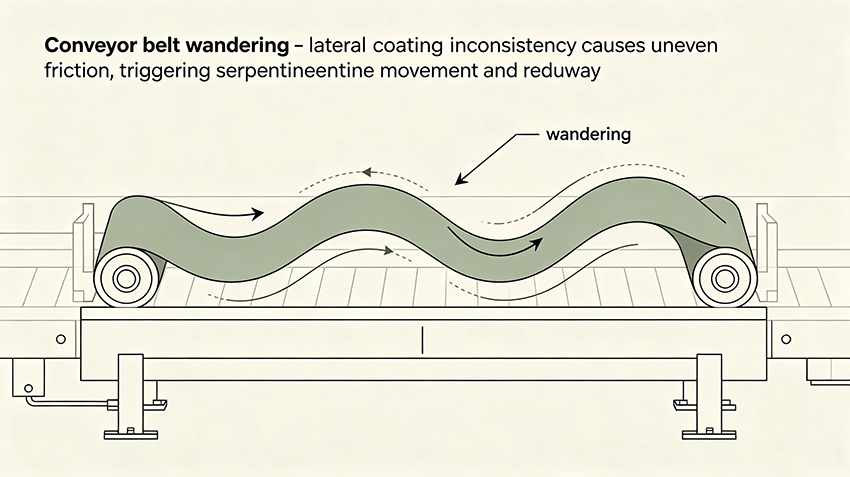

3. Conveyor belt wandering and vibration
For conveyor belt products, lateral coating inconsistency creates uneven thickness and friction coefficient on both sides of the belt – triggering serpentine wandering and periodic vibration during operation, reducing conveying precision of materials.
Weldability and Self-Adhesion – Joint Weakness
Low and inconsistent heat-seal strength: PTFE fiberglass cloth can be thermally laminated to form tubular or bag-shaped components. Uneven coating leads to:
Thickness variation, belt wandering, texture transfer
Weldability
Weak joints, air tightness failure
To achieve uniform coatings: Manufacturers must precisely control:
Emulsion viscosity and solid content
Fiberglass fabric tension
Impregnation squeeze gaps (kiss coating, doctor blade coating)
Multi-stage temperature gradients throughout drying, sintering, and post-sintering processes
Aokai PTFE employs rigorous process control to ensure coating uniformity across all product grades. Contact us to discuss your uniformity requirements and application needs.
