When selecting PTFE high-temperature cloth, most buyers focus on thickness and coating quality. But hidden beneath the PTFE layer lies a critical parameter: the warp and weft density of the fiberglass substrate.
Density defines how tightly yarns are packed. It affects everything – tensile strength, tear resistance, coating adhesion, flexibility, and surface smoothness. Too dense, and the cloth becomes stiff with poor tear strength. Too loose, and pinholes may appear with weak dimensional stability.
Aokai PTFE has optimized fiberglass densities across thousands of production runs. This guide explains how density impacts key properties and helps you select the right balance for your application.
Practical note: For applications requiring maximum tensile strength (e.g., wide conveyor belts under high tension), aim for moderate-to-high density. But avoid extreme density, which causes premature fatigue under dynamic loads.

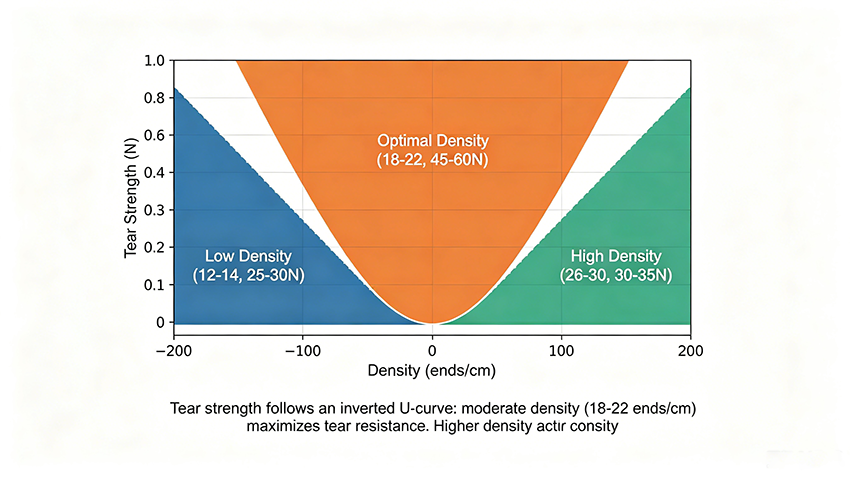

2. Tear Strength – The Inverted U-Curve
Tear strength is the most sophisticated indicator affected by density. After PTFE coating, polymer resin locks woven yarns in place. The relationship follows an inverted U-shaped curve:
Density Level
Tear Strength
Mechanism
Low density
Poor
Large inter-yarn gaps cause sequential yarn breakage; yarns fail to cluster
Moderate density
Optimal (peak)
Yarns slightly slide and bunch together under tearing stress to share force
Over-high density
Poor (sharply reduced)
Yarns fully immobilized by coating + tight weave; stress concentrates on individual yarns → brittle rupture
Key takeaway: Maximum tear strength is achieved at moderate density, not highest density. This is often counterintuitive.
Aokai PTFE offers fiberglass substrates with precisely controlled densities. For tear-critical applications (e.g., conveyor belts on roller conveyors with frequent stops), we recommend moderate density (typically 18-20 ends/cm) to maximize tear resistance.
3. Dimensional Stability & Anti-Warp Performance
Density Characteristic
Dimensional Stability
Effect
Balanced warp/weft density
Excellent
Synchronizes thermal shrinkage and internal stress in both directions; prevents warping at high temperature
Large density discrepancy
Poor
Inconsistent thermal shrinkage → severe fabric distortion under heat
Compact high-density
Outstanding
Substrate restricts yarn contraction
Recommendation: For high-temperature applications requiring precise dimensional accuracy (e.g., heat-sealing gaskets, laminating pads), choose balanced, moderate-to-high density substrates.
Deep penetration – emulsion flows through large pores
Forms “rivet-like” mechanical interlock → excellent bonding
High-density
Hindered – resin struggles to penetrate fiber bundles
Risk of “surface-coated yet inner-dry” structure → poor peel resistance
Trade-off: Low-density requires more coating passes to fill open meshes (otherwise pinholes emerge). High-density needs optimized dipping parameters to ensure full penetration.

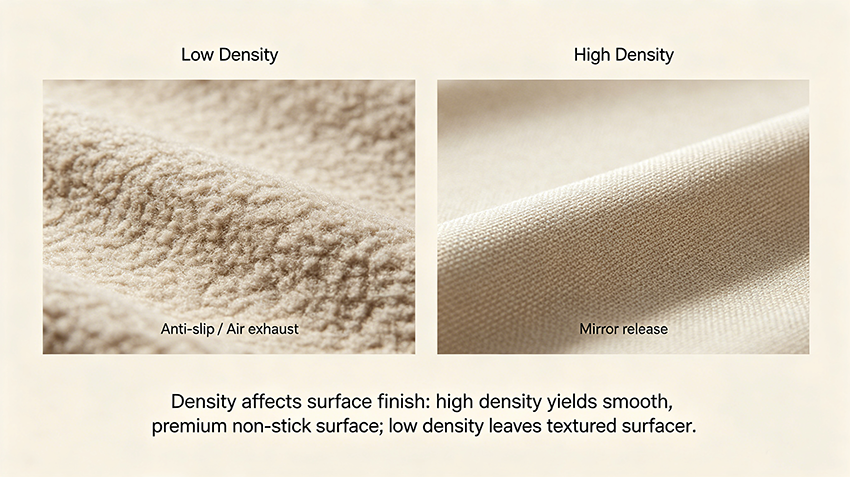

2. Surface Smoothness & Non-Stick Performance
Density Level
Surface After Coating
Best For
High-density
Fine woven texture, smooth finish, premium non-stick, easy cleaning
Conveyor belts where textured surface reduces contact area, exhausts trapped air, or prevents workpiece slipping
3. Withstand Voltage & Pinhole Ratio
Denser base cloth has finer, more uniform pores, requiring thinner coating to achieve pinhole-free surface – ensuring reliable dielectric breakdown strength.
Application implication: For electrical insulation applications, high-density substrate is preferred.
Flexibility & Dynamic Fatigue Resistance
Density Level
Flexibility
Flex Fatigue Life
Best For
Low warp/weft density
Excellent – yarns move freely at interlacing points
Long
Frequent wrapping around small-diameter rollers; custom demolding wrapping for irregular components
High-density
Rigid and stiff
Short
Static or low-flex applications
Failure mechanism for high-density under flexing: Repeated bending causes intense friction and extrusion at yarn crossover points, leading to coating cracking and base fabric fracture.
Recommendation: For products working under continuous high-speed flexing (e.g., conveyor belts on small pulleys, dynamic seals), medium or low density is preferred.
Selection Summary – How to Choose Density
If your priority is...
Choose density
Reason
High tear resistance
Moderate (peak of inverted U-curve)
Avoids low-density (sequential break) and high-density (brittle rupture)
High tensile strength
Moderate-to-high
More yarns share load, but avoid extreme crimp
Excellent non-stick + smooth surface
High
Finer weave, fewer pinholes, premium finish
Maximum coating adhesion
Low-to-moderate
Deep penetration, mechanical interlocking
Flexibility & dynamic bending
Low-to-moderate
Yarns move freely; resists flex fatigue
Dimensional stability at high temp
Balanced, moderate-to-high
Prevents warping, thermal distortion
Electrical insulation / high dielectric
High
Fewer pinholes, uniform coating
Golden rule: Do not blindly pursue maximum density. Optimal density allows sufficient PTFE penetration while balancing tear resistance, flexibility, and surface precision. For most general-purpose industrial applications, medium density (18-22 ends/cm) offers the best all-around performance.
In summary, warp and weft density of fiberglass fabric is a critical but often overlooked parameter for PTFE high-temperature cloth. Higher density increases tensile strength, surface smoothness, and dielectric performance, but reduces tear strength (after an optimal peak), flexibility, and coating penetration. Lower density improves flexibility, flex fatigue life, and coating adhesion, but may leave pinholes and rougher surface finish.
The key is balance. For tear-critical and dynamic applications, choose moderate density (18-22 ends/cm). For ultra-smooth non-stick and electrical insulation, high density may be justified. For maximum adhesion and bending endurance, low-to-moderate density works best.
