PTFE Vs Silicone Fabric: 7 Key Differences You Should Know

When selecting a coated fiberglass fabric for industrial applications – whether for heat sealing, release liners, electrical insulation, or fire protection – two names come up frequently: PTFE high-temperature fabric and silicone fabric.

Both start with the same high-strength fiberglass base, but their surface coatings (PTFE resin vs silicone rubber) lead to dramatically different performance profiles. Choosing the wrong one can result in premature wear, stuck materials, or even equipment damage.

Aokai PTFE has manufactured both types for decades. This side-by-side comparison covers temperature resistance, flexibility, non-stick performance, wear resistance, chemical stability, electrical insulation, and fire safety – so you can make the right choice.

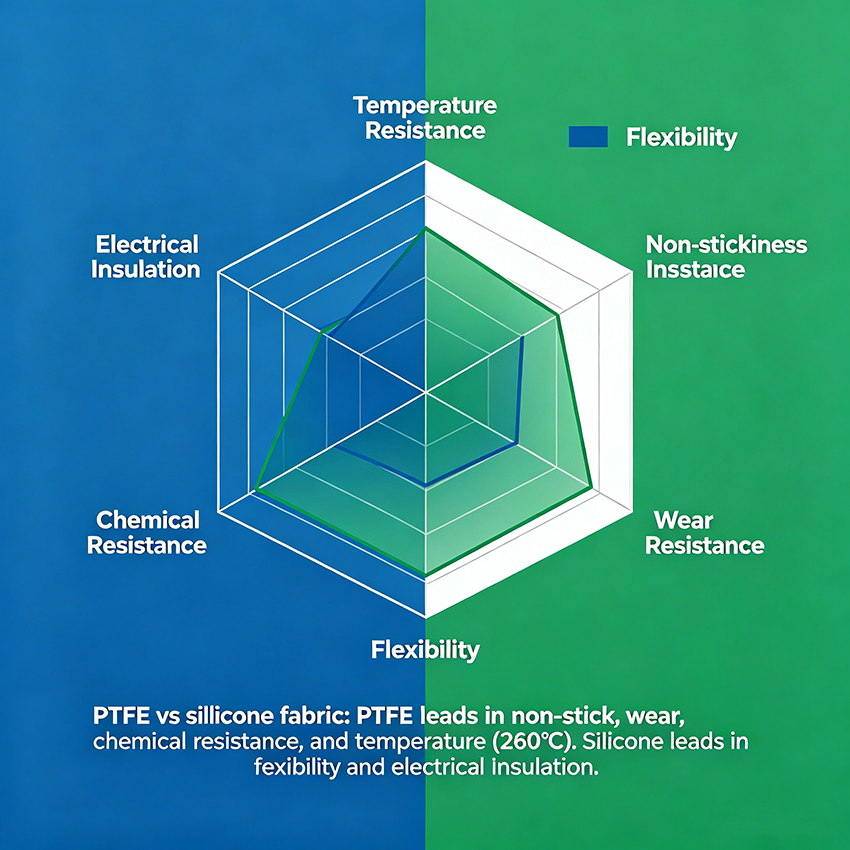

At a Glance – PTFE vs Silicone Fabric Comparison Table

Temperature Resistance – Where PTFE Takes the Lead

PTFE high-temperature fabric works steadily from -70°C to 260°C and can withstand up to 350°C for short periods. This makes it suitable for baking ovens, heat sealers, and high-temperature conveyor systems.

Silicone fabric has a maximum continuous working temperature of approximately 230°C. For applications consistently above 230°C, PTFE is the more reliable choice.

Real-world impact: In a 250°C drying oven, silicone fabric may begin to discolor and lose elasticity within months, while PTFE fabric remains stable for years.

Flexibility & Physical Form – Silicone Wins for Conformability

When to choose silicone: Applications requiring tight bends, folding, or compression – such as flexible duct connectors, gaskets for irregular surfaces, or removable covers.

Aokai PTFE offers both fabric types. Our customers often start with PTFE for its non-stick benefits, then switch to silicone only when extreme flexibility or electrical insulation is required. For most industrial heat applications, PTFE’s stiffness is manageable with proper installation technique (no sharp folds).

Non-Stick & Release Performance – PTFE Is Unmatched

PTFE has one of the lowest coefficients of friction of any solid (≈0.05-0.1). Almost nothing sticks to it – except itself. This makes PTFE high-temperature fabric the gold standard for:

• Baking sheets and oven liners (food releases easily)

• Heat sealing machine covers (melted plastic does not adhere)

• Conveyor belts for sticky products (cheese, candy, adhesive materials)

Silicone fabric has a frictional, rubbery surface. It tends to trap dust and does not offer any significant non-stick advantage. In fact, silicone can become tacky at high temperatures and may bond to certain materials.

Wear & Abrasion Resistance – PTFE Lasts Longer

Thanks to PTFE’s extremely low friction coefficient, PTFE fabric delivers outstanding wear resistance – sliding parts, scraper blades, and product contact cause minimal surface damage.

Silicone fabric is softer and wears faster under abrasion. In conveyor belt applications with frequent scraping or sliding contact, silicone fabric may need replacement 3-5 times more often than PTFE.

Chemical & Environmental Stability – PTFE for Harsh Media

Key takeaway: For chemical plants, laboratories, or any environment with solvent exposure, PTFE is the clear winner.

Electrical Insulation & Fire Resistance – Silicone’s Strengths

Electrical insulation: Silicone fabric is a premium electrical insulator capable of withstanding high voltage loads. It is widely used for:

• Bus bar insulation wraps

• Transformer and cable insulation

• High-voltage protective covers

PTFE fabric offers only average insulating properties and is not typically specified for electrical applications.

Fire resistance: This is a major strength of silicone fabric. It is non-flammable, heat-insulating, and commonly made into:

• Fire blankets for industrial safety

• Fire curtains and smoke barriers

• Welding protection screens

While PTFE fabric is flame retardant, it is not a primary material for fireproofing applications.

Additional property – weather resistance: Silicone fabric also boasts superior weather resistance for long-term outdoor service, with a service life of up to 10 years under UV exposure. PTFE fabric degrades very slowly outdoors (30+ years) but can become brittle in extreme cold.

Summary – How to Choose Between PTFE and Silicone Fabric

In summary, PTFE high-temperature fabric and silicone fabric each have distinct strengths. PTFE excels in non-stick, temperature resistance (260°C), wear resistance, and chemical inertness – making it the top choice for food processing, heat sealing, and chemical environments. Silicone fabric shines in flexibility, electrical insulation, and fire protection – ideal for electrical wraps, fire blankets, and flexible connections.

Neither is universally “better” – the right choice depends on your operating temperature, chemical exposure, mechanical requirements, and budget.

Need help deciding? Aokai PTFE supplies both PTFE and silicone fabrics in various thicknesses and widths. Contact our technical team with your application details for a recommendation.
