In printing processes – whether screen printing, digital inkjet, or heat transfer – the conveyor belt plays a critical role. It carries the substrate through drying ovens, UV curing units, or heat presses. If the belt sticks to ink, deforms under heat, or allows chemical attack, print quality suffers and downtime increases.
PTFE high-temperature fabric (PTFE-coated fiberglass or aramid) solves these problems. It combines non-stick release, high heat resistance, dimensional stability, and chemical inertness in one material.
Aokai PTFE has supplied printing conveyor belts for decades. Below are six key advantages that make PTFE fabric the preferred choice for printers worldwide.
Non-Stick Performance – No More Ink Residue
This is the most immediately noticeable advantage. Printing pastes, UV inks, and adhesives do not adhere to the PTFE surface.
1. What it means for your printing line
The belt stays clean throughout the run. No need to stop and scrape off dried ink.
Printed materials release cleanly – no smearing, no ghosting, no transfer of ink back to the substrate.
Cleaning between jobs is fast – a simple wipe or spray rinse, not a labor-intensive scraping session.
2. Real-world impact
In screen printing, plastisol inks and water-based pastes can leave sticky residues on conventional belts. With PTFE fabric, the belt remains clean shift after shift. In digital printing, UV-curable inks that accidentally overspray do not bond to the belt.

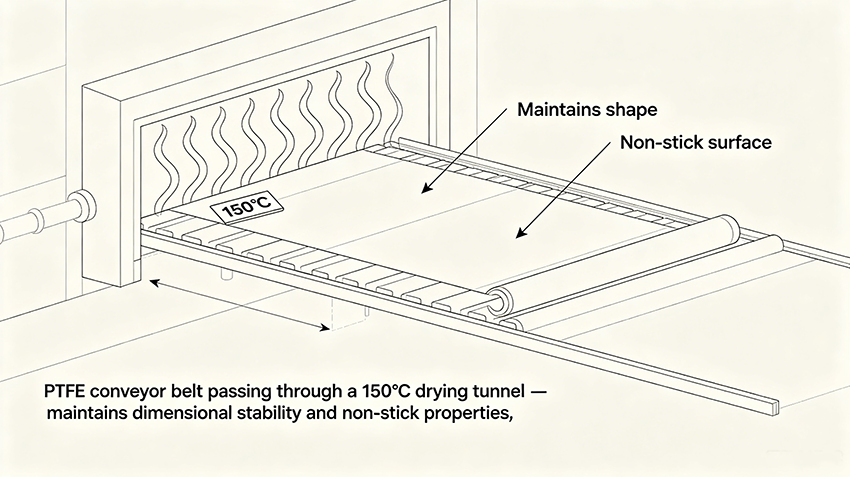

Heat Resistance – Stable at Drying Temperatures
Printing lines often include drying tunnels (50-150°C for water-based inks), UV curing lamps, or heat presses for transfer printing (up to 200-230°C). PTFE fabric handles these temperatures with ease.
1. Key specifications
Continuous operating temperature: -70°C to 260°C
Short-term peak: 300°C or higher
No thermal degradation within this range – the belt does not soften, stretch, or emit odors
2. Energy efficiency
Because PTFE fabric does not absorb heat like rubber or metal belts, it does not waste energy warming up the belt itself. More heat goes into drying the printed substrate, reducing energy costs and increasing throughput.
Aokai PTFE note: For heat transfer printing (sublimation), our PTFE fabric withstands the 200-230°C pressing temperatures while providing non-stick release. No transfer of ink to the belt.
Print registration depends on the belt not stretching, shrinking, or tracking off-center. PTFE fabric excels here.
1. Low elongation under tension
Elongation rate <0.5% under normal operating tension
Even at high temperatures (200°C+), dimensional change is minimal
This ensures that multi-color print jobs stay registered throughout the run
2. Consistent tension control
The low stretch means tension settings remain stable. The belt does not sag or tighten unpredictably, which would cause misalignment or edge wrinkles.
3. Prevents belt tracking issues
For wide-format printers (2-3 meters wide), belt tracking is critical. PTFE fabric, properly seamed, runs straight without wandering – reducing edge damage and operator intervention.
Chemical Inertness – Resists Corrosive Printing Pastes
Screen printing pastes, solvents, and cleaning agents can be aggressive. PVC-based inks contain plasticizers. Water-based inks contain amines. UV inks contain monomers. All can attack ordinary conveyor belt materials.
1. PTFE resists nearly everything
Strong acids (sulfuric, nitric, hydrochloric)
Strong alkalis (sodium hydroxide)
Organic solvents (alcohols, ketones, toluene)
Printing pastes, plastisols, and UV-curable inks
The belt surface remains intact even after months or years of exposure to corrosive chemicals. No swelling, no cracking, no delamination.
Additional Functional Properties – Low Friction, Breathability, and More
PTFE fabric brings several other benefits that improve printing line performance.
1. Low surface friction
The belt slides smoothly over guide plates and rollers. This reduces drive motor load and prevents substrate dragging. For vacuum conveyors, the low friction allows the belt to move while the substrate stays fixed.

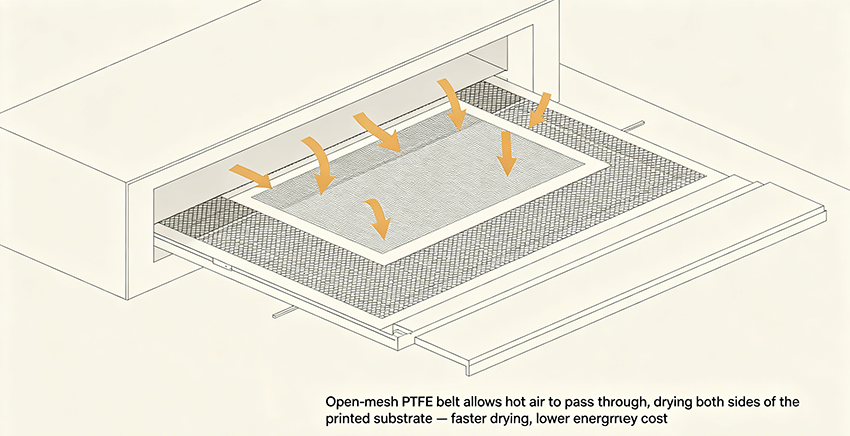

2. Decent air permeability (mesh belts)
Open-mesh PTFE belts allow hot air to flow through the belt, drying printed materials from both sides. This dramatically improves drying efficiency and reduces energy costs compared to solid belts.
3. Flex fatigue resistance
PTFE-coated fiberglass withstands repeated bending over small-diameter rollers (down to 25-30mm radius). This allows compact machine designs without belt cracking.
4. Anti-static option
For printers handling static-sensitive substrates (thin films, paper in dry environments), anti-static PTFE fabric is available. Surface resistance 10⁶–10⁹ Ω dissipates charge before it can cause sparking or material cling.
5. Food-grade safety
PTFE fabric is non-toxic and FDA compliant. For food packaging printing (e.g., flexible pouches), the belt is safe for incidental contact with food-contact materials.
Wide Compatibility – Customizable for Any Printing Process
PTFE fabric is not a one-size-fits-all material. Aokai PTFE offers a range of options to match specific printing applications.
1. Customizable parameters
Parameter
Available Options
Thickness
0.08mm to 0.40mm
Weave
Plain, twill, satin, or open mesh
Width
Up to 4 meters (custom seaming for longer belts)
Color
Natural (off-white), black (anti-static), brown
Surface
Standard non-stick or enhanced release (lower friction)
Seam type
Finger splice, overlap, or endless seamless
2. Why this matters
Different printing processes have different demands:
Screen printing (textile): Thicker belt (0.25-0.30mm) for durability, open mesh for air flow through the dryer.
Heat transfer (sublimation): Thin belt (0.13-0.18mm) for fast heat transfer, solid surface.
UV digital printing: Anti-static belt to prevent paper clinging.
Resists corrosive printing pastes, solvents, and cleaners
Low friction + breathability
Smooth operation, energy-efficient drying
Customizable
Available in thicknesses, weaves, widths, anti-static, FDA grades
Aokai PTFE manufactures printing conveyor belts that outlast rubber, silicone, and conventional fabric belts by years. For a printing line that runs cleaner, registers tighter, and requires less maintenance, PTFE fabric is the upgrade.
Contact us with your printer specifications (width, roller diameter, temperature range, and ink type) for a belt recommendation.
