On a fast-moving packaging line, the heat sealer is the bottleneck. Every time molten plastic sticks to the sealing knife, the line stops for scraping – killing productivity. Every bad seal sends bags back for rework. Every worn sealing die costs thousands to replace.
The solution is deceptively simple: apply PTFE high-temperature tape to the sealing surface. This thin layer of PTFE-coated fiberglass, with high-temperature silicone adhesive, transforms the heat sealing process.
Aokai PTFE has supplied PTFE tape to packaging equipment manufacturers and end-users for years. This article covers four core application values – anti-stick release, equipment protection, seal quality, and low friction – plus key selection criteria (substrate, temperature, adhesive, mechanical properties) to help you choose the right tape for your sealing line.
Four Core Application Values of PTFE Tape in Heat Sealing
1. Eliminate Adhesive Residue – Continuous High-Efficiency Production
This is PTFE tape’s most direct advantage. Packaging films including PE, PP, PET, and aluminum composite films tend to soften and stick to bare metal sealing surfaces under heat, causing bag rupture, film tearing, and frequent downtime for cleaning.
How PTFE helps: Ultra-low surface energy (18-20 dynes/cm) repels molten plastics and hot melt adhesives. The film releases cleanly every cycle.
Result: Reject rate drops; machine halt time for cleaning is reduced by 80-90%.
2. Protect Heat-Sealing Components – Extend Equipment Life
The sealing knife or heating bar is a precision metal component. Over time, friction from films and cutting blades wears it down, and oxidation/corrosion pits the surface.
PTFE as a consumable protective layer: The tape acts as a low-cost, replaceable wear pad. Replacing tape takes minutes and costs pennies compared to repairing or replacing a customized sealing die ($500-$5,000+).
Result: Equipment service life extends significantly; die replacement intervals lengthen.
3. Homogenize Heat Distribution – Upgrade Seal Consistency

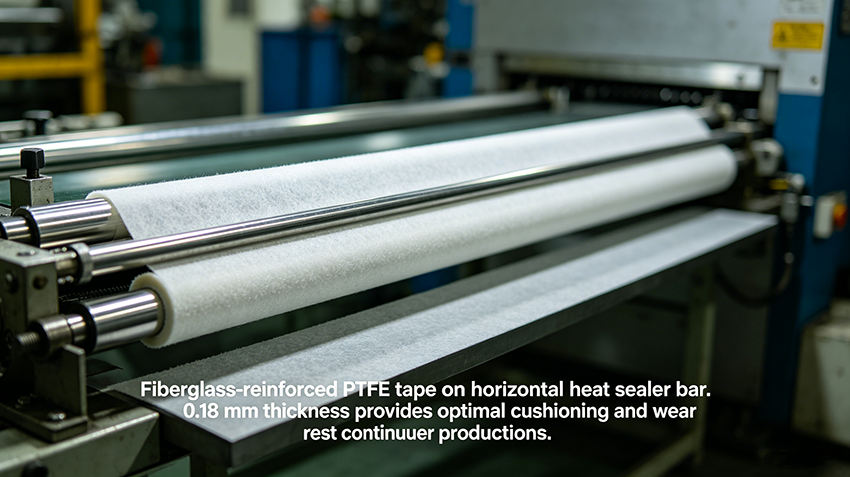

Premium fiberglass-reinforced PTFE tape has moderate cushioning and thermal diffusion properties. It compensates for tiny unevenness between the sealing knife and packaging film at the micro level.
How it works: The tape distributes both heat and pressure more evenly across the sealing area.
Result: Neat, consistent seals with uniform strength – no incomplete seals (leaks) or over-burning (pinholes).
4. Lower Friction Coefficient – Smooth Film Conveying

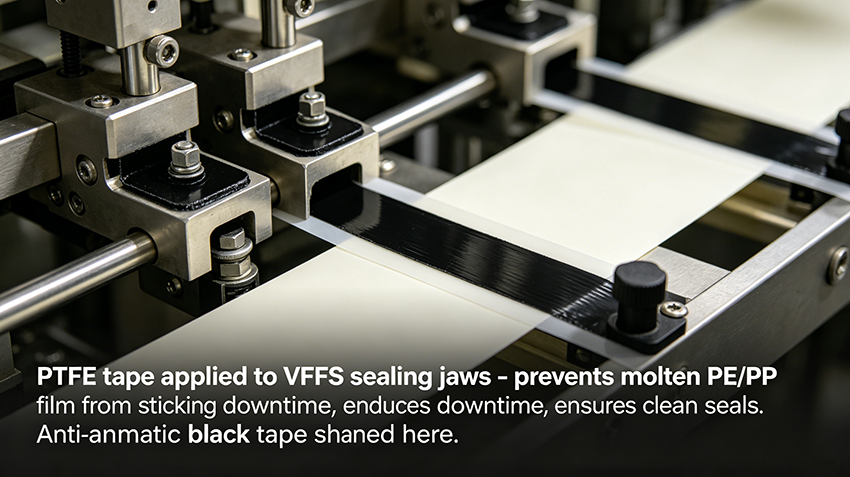

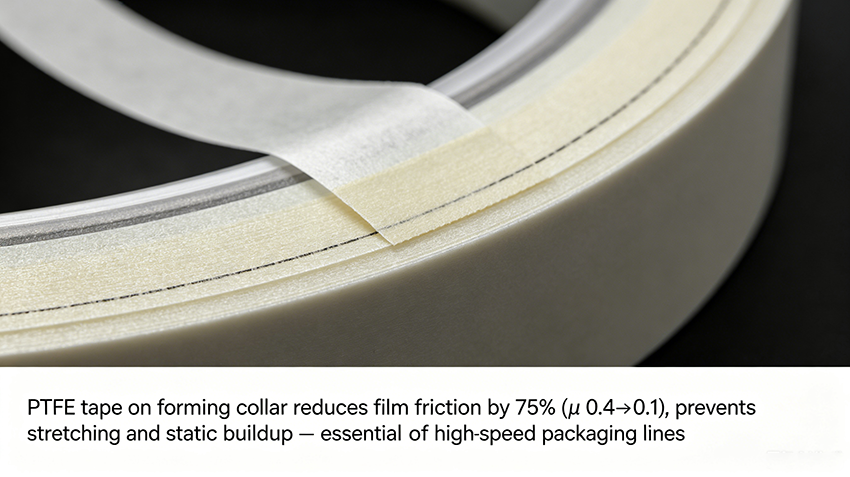

PTFE’s ultra-low kinetic friction coefficient (μ≈0.05-0.10) is valuable beyond the sealing bar. It is widely applied on forming collars and tube sleeves of vertical form fill seal (VFFS) machines.
Benefits: Reduces running resistance of packaging film; prevents film stretching deformation; minimizes static buildup (when anti-static grade is used).
Result: Stable film feeding, fewer jams.
Aokai PTFE offers fiberglass-backed PTFE tape specifically for heat sealing applications. Our silicone PSA is crosslinked for 260°C continuous service, validated by 1,000-hour heat aging tests with no adhesive ooze. Black anti-static grade (surface resistance 10⁶-10⁹ Ω) is available for high-speed film lines.
Key Performance Indicators – How to Select the Right PTFE Tape
Heat-sealing conditions vary greatly in working temperature, compression force, and running speed. The following specifications must be verified during selection.
1. Substrate Structure & Thickness
Substrate Type
Thickness Options
Best For
Fiberglass-based PTFE tape (most widely used)
0.13 mm, 0.18 mm, 0.25 mm
General heat sealing
– 0.13 mm
–
Superior heat transfer for high-speed sealing
– 0.18 mm & above
–
Enhanced wear resistance and cushioning; suitable for heavy compression, hot cutting, rough-surface sealing knives
Solid PTFE film tape (skived PTFE)
Various
Demanding release applications with light friction; inferior wear/puncture resistance compared to fiberglass-backed
Selection tip: 0.13 mm or 0.18 mm fiberglass tape for regular heat sealing; upgrade to 0.25 mm for frequent cutting scenarios prone to tape breakdown (e.g., lines where the sealing knife also cuts the film).
2. Temperature Resistance & High-Temperature Release Stability
Parameter
Requirement
Why
Continuous operating temperature
-70°C to 260°C
Covers conventional heat-sealing range (120-220°C)
Instant peak temperature
≥300°C (brief)
Pulse sealing and hot cutting may momentarily exceed 300°C – must avoid scorching or carbonization
Long-term release stability
Premium PTFE emulsion
Low-grade PTFE coating suffers resin migration and degraded anti-stick performance under sustained high heat
3. Adhesive Type – Silicone PSA Is Non-Negotiable
The maximum service temperature of finished tape is determined by the adhesive – a top cause of premature failure.
Adhesive Type
Heat Resistance
Suitability for Heat Sealing
Silicone PSA (preferred)
≥260°C
✅ Retains stable adhesion at high temperature, no embrittlement, minimal residue after removal
Acrylic PSA
150-180°C typical
❌ Prone to adhesion failure, bubbling, residual glue overflow above threshold – only for low-temp or room-temperature applications
Peel adhesion requirement: Minimum initial tack ≥8 N/25 mm (stainless steel) ensures tight lamination on smooth sealing metal without edge curling or shifting under heat and pressure.
4. Mechanical & Physical Properties
Property
Fiberglass-Backed Tape
Solid PTFE Film Tape
Tensile strength
High (≥200 N/cm)
Low
Elongation
≤5% (dimensionally stable)
Higher – requires careful application to avoid stretching
High-speed film lines where static causes dust adsorption, jams, or operator shock
Recommendation: Black anti-static PTFE tape is available for severe static accumulation – it conducts charges away smoothly without compromising release.
Summary – Quick Selection Guide
Heat Sealing Application
Recommended PTFE Tape
Key Specs
Standard VFFS/HFFS (120-180°C)
0.13 mm fiberglass + silicone PSA
Good heat transfer, low cost
Heavy-duty sealing / hot cutting
0.18-0.25 mm fiberglass + silicone PSA
Extra wear and puncture resistance
High-speed film with static issues
0.13-0.18 mm anti-static black PTFE + silicone PSA
Surface resistance 10⁶-10⁹ Ω
Pulse sealing (brief 300°C spikes)
0.13 mm premium silicone PSA
Verified 300°C peak resistance
Low-temperature / intermittent use only
Acrylic PSA (not recommended for production)
Only if temp <150°C
In summary, PTFE high-temperature tape applied to heat-sealing knives and sealing strips delivers four core values: anti-stick release (prevents downtime), equipment protection (saves costly die replacement), optimized seal quality (homogenized heat/pressure), and low friction (smooth film feed).
For standard packaging heat sealing, fiberglass-backed PTFE tape with silicone adhesive in 0.13 mm or 0.18 mm thickness is the proven workhorse. For lines with frequent cutting or high static, upgrade to 0.25 mm or anti-static black grade. Always verify the adhesive’s continuous temperature rating – silicone PSA, not acrylic.
Need PTFE tape for your heat sealing line? Aokai PTFE offers a full range of thicknesses, widths, and anti-static options with documented silicone PSA heat ratings. Contact us with your machine type, sealing temperature, and film materials for a recommendation.
