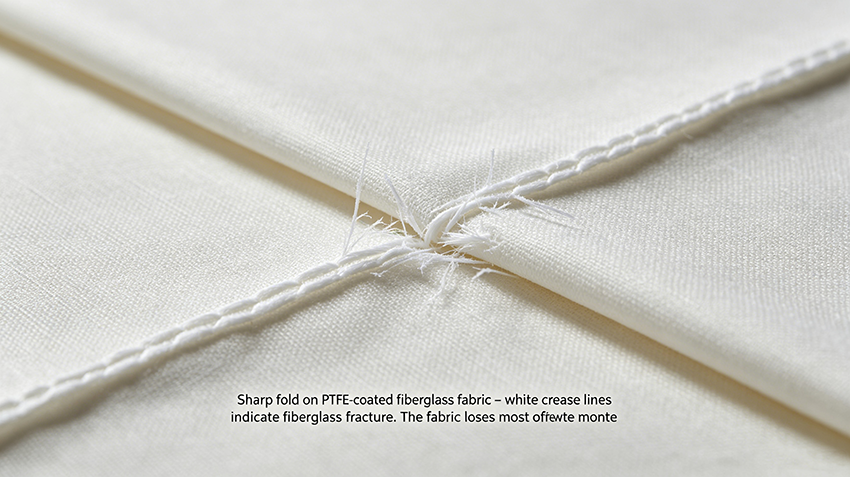

If you have ever folded a piece of PTFE-coated fiberglass fabric sharply, you probably saw a white crease line appear instantly. Fold it again at the same spot, and the fabric may tear.
This is not a defect – it is the inherent behavior of the material. PTFE high-temperature fabric excels at resisting heat, chemicals, and sticking, but flex resistance (repeated folding endurance) is its weakest mechanical property.
Aokai PTFE has tested flex life across many thicknesses and weaves. This article explains why the fabric folds poorly, compares it to other materials, and gives practical ways to work around the limitation.
Why Does PTFE Fabric Have Poor Flex Resistance?
The root cause is the fiberglass substrate, not the PTFE coating.
1. Fiberglass – strong but brittle
Glass fibers have extremely high tensile strength but very low elongation at break (typically 2-4%). When bent repeatedly, individual filaments undergo fatigue and fracture. Once a few fibers break, stress concentrates on the remaining ones, leading to rapid propagation – the fabric tears easily.
2. PTFE coating – a limited buffer
The PTFE layer lubricates the fiber strands, reducing internal friction and slightly improving pliability. However, it cannot eliminate the brittleness of glass. It only delays fiber rupture by a small margin.

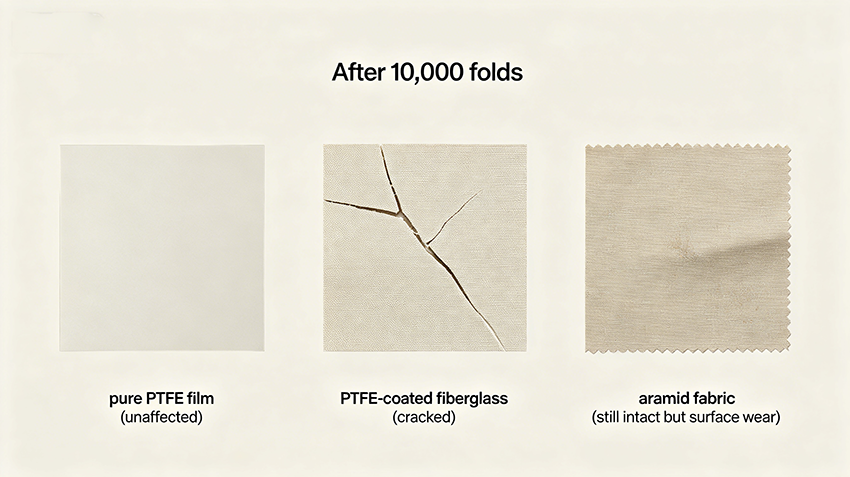

How Does It Compare to Other Materials?
Material
Flex Resistance (Relative)
Why
PTFE-coated fiberglass (this article)
Poor
Brittle glass fibers crack under repeated bending
Pure PTFE film (skived)
Excellent (hundreds of thousands of cycles)
No reinforcement, flexible molecular chains
Uncoated fiberglass cloth
Worse than coated
PTFE coating reduces inter-fiber abrasion, so coated is slightly better
Aramid fabric (e.g., Nomex)
Good
Organic fibers are inherently more flexible
PPS or polyester fabric
Good
Lower heat resistance but much better flex life
Key takeaway: PTFE-coated fiberglass sits at the mid-to-lower end among high-temperature fabrics for flex resistance. It is better than bare glass but far worse than pure PTFE film.
Key Factors That Affect Flex Resistance
1. Thickness – the most critical factor
Thickness
Approximate Folding Endurance
Failure Mode
0.08mm
Hundreds to ~1,000 folds
Gradual micro-cracking
0.13mm
Dozens to a few hundred folds
White crease after sharp fold
0.25mm and above
Dozens of folds – visible cracking within 50 cycles
Brittle fracture, coating delamination
Rule of thumb: Thinner fabrics flex better. For applications requiring repeated bending, specify the thinnest grade that meets your other needs (strength, temperature).
2. Weave construction
Satin weave – longer floats allow yarns to slide slightly, distributing bending stress. Better flex life than plain weave.
At elevated temperatures (200-260°C), the PTFE coating softens, and fiberglass mechanical strength declines. This further worsens flex fatigue resistance. If your application involves both high heat and frequent bending, expect shorter life.

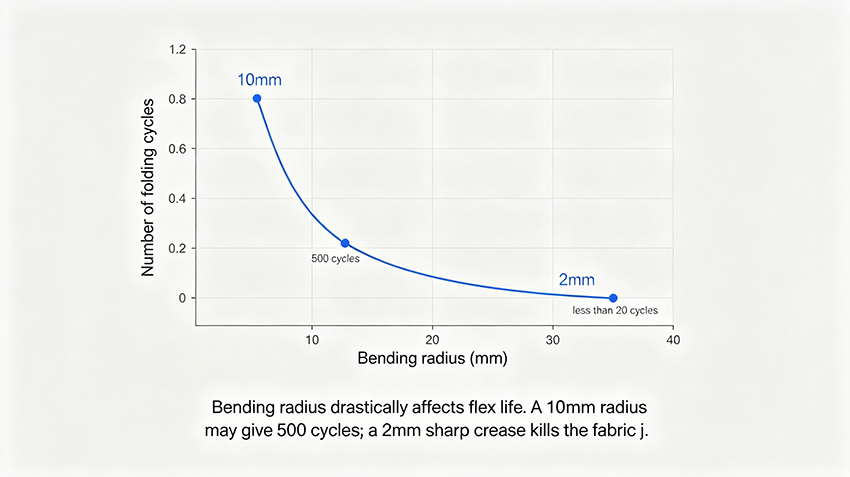

4. Bending radius
Larger radius = longer life. Sharp creasing (radius <1mm) creates dead folds with instantaneous fiber breakage. For guide rollers, use the largest practical diameter. As a rough guide, the minimum recommended roller diameter is 10-20x the fabric thickness.
Internal test data (Aokai PTFE): For 0.13mm satin weave fabric, bending over a 10mm mandrel achieved 500-800 cycles before visible cracking. Over a 5mm mandrel, cycles dropped to 100-150. Over a 2mm mandrel (sharp crease), failure occurred within 20 cycles.
Practical Application Recommendations
If your equipment requires frequent reciprocating bending – such as:
High-frequency welder drive belts
Tension belts that wrap around small pulleys
Demolding conveyor belts with sharp turns
You have three options:
1. Option 1 – Optimize PTFE fabric selection within its limits
Choose thinner grades (0.08mm to 0.13mm) over heavy ones
Prefer satin weave over plain weave
Request MIT flex test data from your supplier (ASTM D2176 or similar)
Design for larger bending radii in the machine layout
Accept PTFE fabric as a consumable – plan for periodic replacement (every few months depending on cycle count)
2. Option 2 – Switch to solid PTFE film
Pure PTFE film (skived) has exceptional flex resistance. However, it lacks the fiberglass reinforcement, so it has lower tensile strength and tears more easily under tension. It is suitable for light-duty, low-tension bending applications.
3. Option 3 – Use aramid or other organic fiber fabric
Aramid (e.g., Nomex) or PPS fabric coated with PTFE offers better flex life than glass-based PTFE fabric. The trade-off: lower continuous temperature resistance (typically ≤200°C) and different surface properties. For applications under 200°C with heavy bending, consider these alternatives.
Aokai PTFE manufactures PTFE-coated aramid fabric on request. Contact us for temperature and flex data.
Summary – Know the Limits, Design Accordingly
PTFE high-temperature fabric stands up well against tension, high heat (260°C), and chemical attack. But its poor flex resistance is a genuine constraint. It cannot withstand sharp repeated folding like rubber belts or pure PTFE film.
Use it where bending is gentle or infrequent. Where sharp or frequent bending is unavoidable, go thinner, use satin weave, increase bending radius, or switch material.
Aokai PTFE provides flex test data for all our fabric grades. We can help you select the right thickness and weave for your application’s bending demands.
