PTFE is famous for its low friction coefficient (0.05-0.10). But when PTFE high-temperature tape is used in sliding friction applications – such as guide rails, wear strips, chute liners, or sliding seals – friction alone isn’t enough. The real challenge is abrasion resistance.
Without proper selection, the PTFE coating wears through in weeks, exposing the fiberglass substrate and causing catastrophic failure. Standard non-stick tape is not designed for dynamic sliding contact.
Aokai PTFE has developed wear-resistant PTFE tapes for demanding sliding applications. This guide covers five key considerations: abrasion resistance metrics, coating quality, thermal stability, adhesive performance, and installation techniques.
Core Performance Indicators to Verify
1. Abrasion Resistance – The Critical Parameter
Test Method
Standard
Typical Value (Standard PTFE)
Target for Wear-Resistant Tape
Taber Abrasion Loss (ASTM D4060, CS-17 wheel, 1000g load)
mg/1000 cycles
Hundreds of mg
<15 mg (premium: <5 mg)
Dynamic Coefficient of Friction
μ
0.05-0.10 initially
Stable 0.05-0.15 over life
PV Limit (Pressure × Velocity)
Pa·m/s or psi·fpm
Varies by formulation
Obtain from supplier

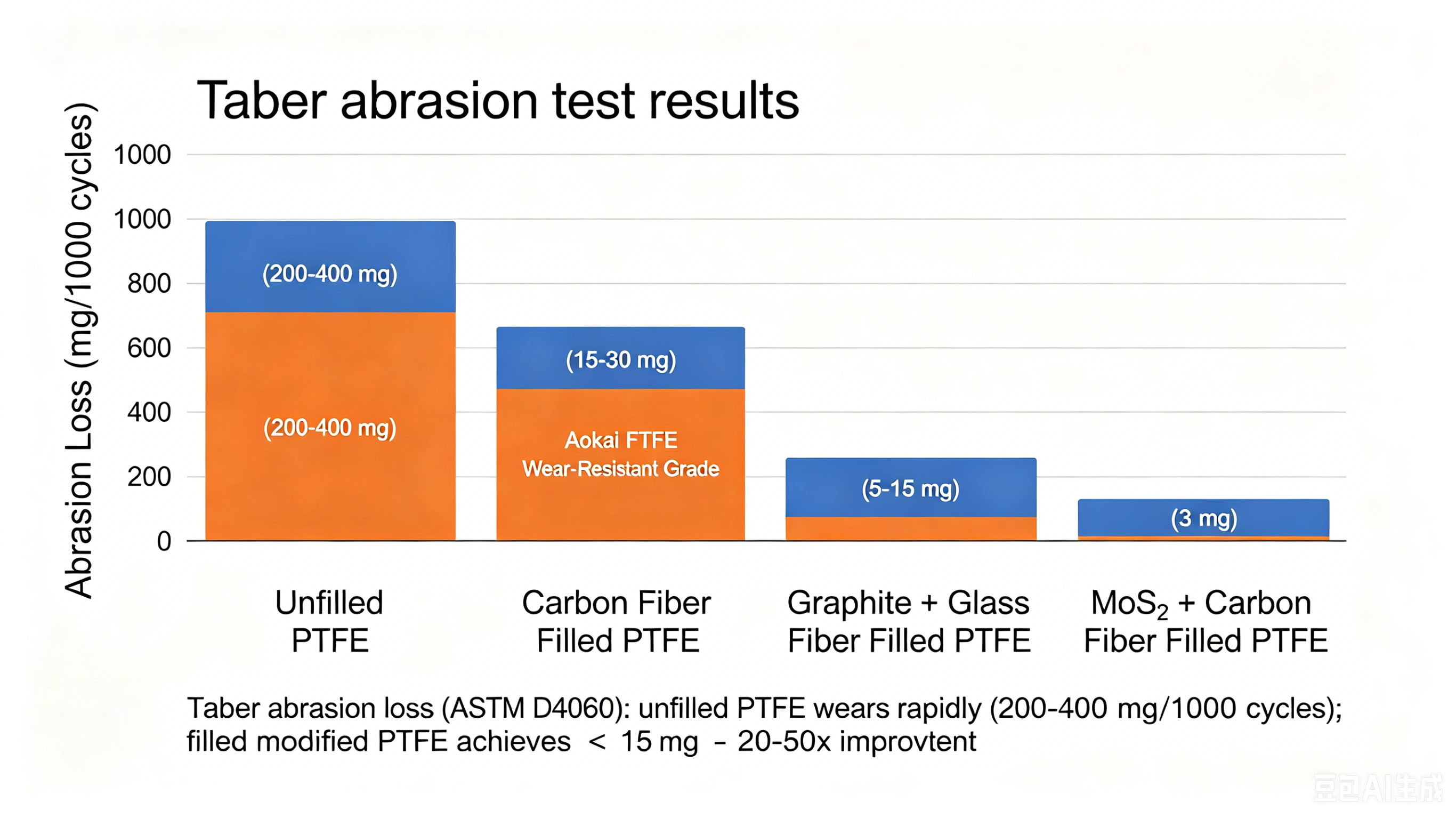

Why Taber abrasion matters: Pure PTFE coating wears rapidly under sliding contact. Filled modified PTFE (with carbon fiber, graphite, MoS₂, or glass fiber) drastically reduces wear rate. Premium wear-resistant tape can achieve <5 mg loss per 1000 cycles – 20-50x better than unfilled PTFE.
PV limit defined: Maximum allowable product of contact Pressure (P) and sliding Velocity (V). Exceeding this limit causes rapid wear, overheating, or coating failure. Always request PV curves from your supplier.
Aokai PTFE offers wear-resistant tape grades with Taber abrasion loss under 10 mg/1000 cycles – validated by independent ASTM D4060 testing. Our carbon-fiber-filled formulation maintains μ below 0.15 even after 10,000 cycles.
For low-surface-energy substrates (e.g., stainless steel)
Note: For heavy-load sliding applications where the tape is under continuous shear stress, consider mechanical fastening (rivets, clamping strips) in addition to adhesive.
5. Surface Texture & Thickness Uniformity
Surface texture: Slight embossed texture helps retain fine wear debris, preventing coefficient spikes or plough-type abrasive wear caused by accumulated particles.
Thickness tolerance: Total thickness controlled within ±0.02 mm across full roll to ensure flush installation and avoid localized premature breakdown.
Optimization Solutions for High-Wear Sliding Conditions
For heavy-load continuous sliding, combine adhesive with mechanical fastening.
Design for modular replacement where possible.

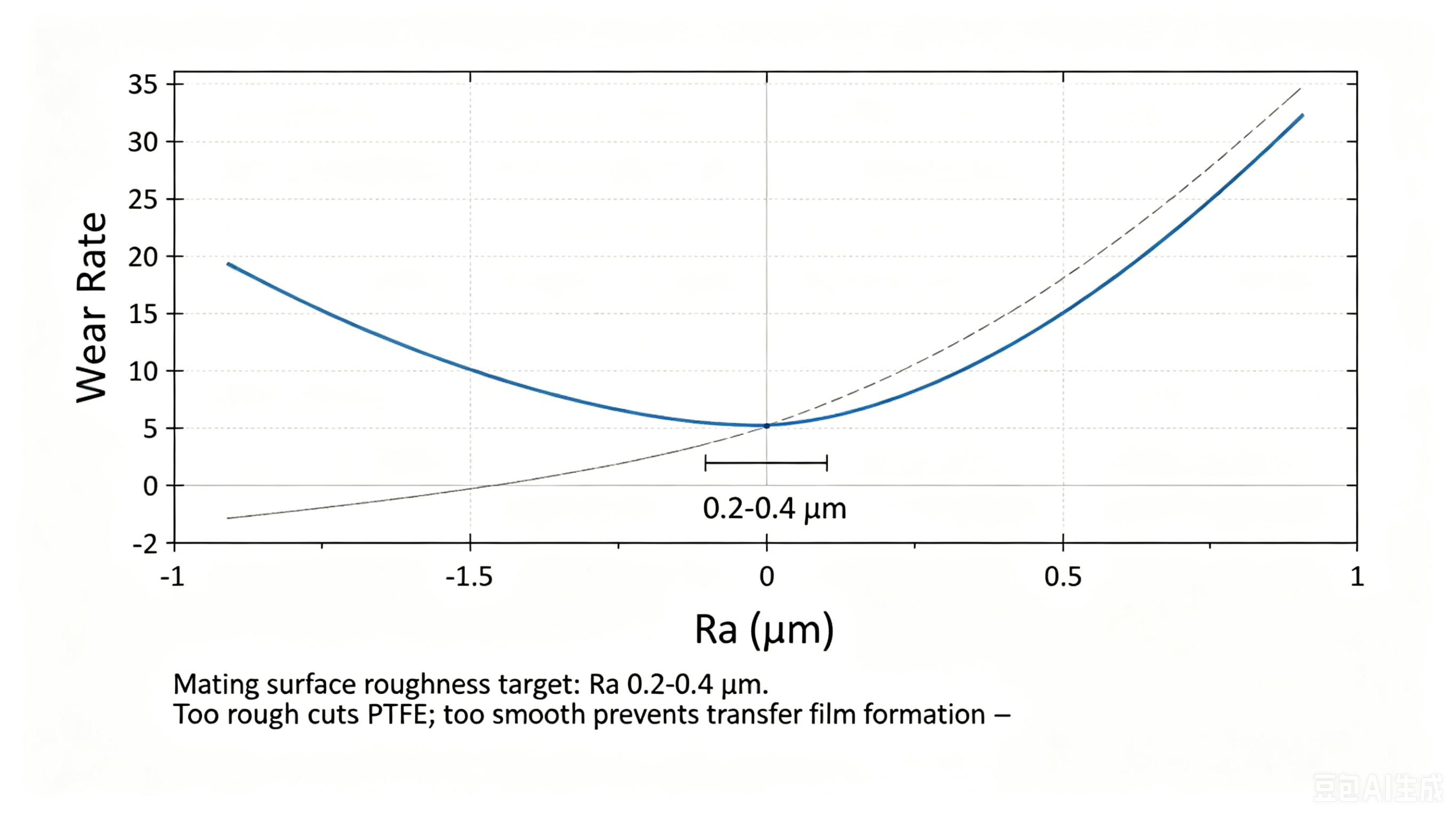

In summary, selecting PTFE high-temperature tape for abrasive sliding friction applications requires going beyond standard non-stick and thermal specs. Focus on Taber abrasion loss (<15 mg/1000 cycles), filled modified coating, substrate tensile strength (≥200 N/cm), and mating surface roughness (Ra 0.2-0.4 μm). Proper edge protection, full bonding, and modular design extend service life dramatically.
Avoid unfilled PTFE tape for dynamic sliding contact – it will wear through rapidly. Instead, specify wear-resistant grades with validated abrasion data.
Need a wear-resistant PTFE tape for your sliding application? Aokai PTFE offers carbon-fiber, graphite, and MoS₂-filled grades with Taber abrasion loss below 10 mg/1000 cycles. Contact us with your pressure, velocity, and counterpart material for a recommendation.
