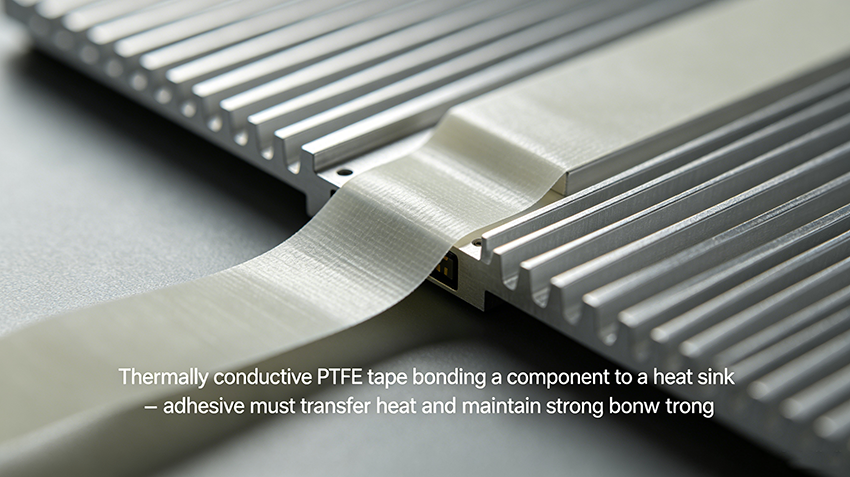

When a PTFE tape needs to dissipate heat – for example, bonding a power component to a heat sink – the adhesive layer must do two things at once: transfer heat and hold tight. Adding thermally conductive fillers (alumina, boron nitride, etc.) improves thermal conductivity but almost always reduces adhesion.
The challenge is to maximize heat transfer while losing as little stickiness as possible. The answer lies in three filler parameters: particle size, particle shape, and loading percentage.
Aokai PTFE has developed thermally conductive PTFE tapes for electronics and industrial applications. This article explains how particle size, morphology, and loading affect the trade-off, and how to formulate for the best balance.
Particle Size – The Fine-Coarse Trade-Off
Particle size governs how well fillers form a heat-conducting network and how well the adhesive wets the bonding surface.
1. Fine particles (nano to submicron)
Thermal effect: High surface area leads to more particle-particle contact points, but also more interfacial thermal resistance (phonon scattering). Severe agglomeration limits conductivity improvement.
Adhesion effect: Fine particles absorb large amounts of resin and tackifiers, hardening the adhesive. Initial tack drops sharply. Flowability decreases, reducing wetting on low-surface-energy PTFE substrates → low peel strength.
Verdict: Rarely used alone. Ultra-fine fillers give marginal thermal gain but destroy adhesion.
2. Coarse particles (micron to tens of microns)
Thermal effect: Fewer contact points but longer individual heat conduction paths. When closely stacked along the adhesive thickness direction, they give good through-plane conductivity.
Adhesion effect: Low surface area adsorbs less resin, preserving adhesive softness. However, if particles are as thick as or thicker than the adhesive layer (typically 25-100 μm), they roughen the tape surface, reduce effective bonding area, and create stress concentration points.
Verdict: Used as the primary conductive skeleton, but must be sized below adhesive thickness.

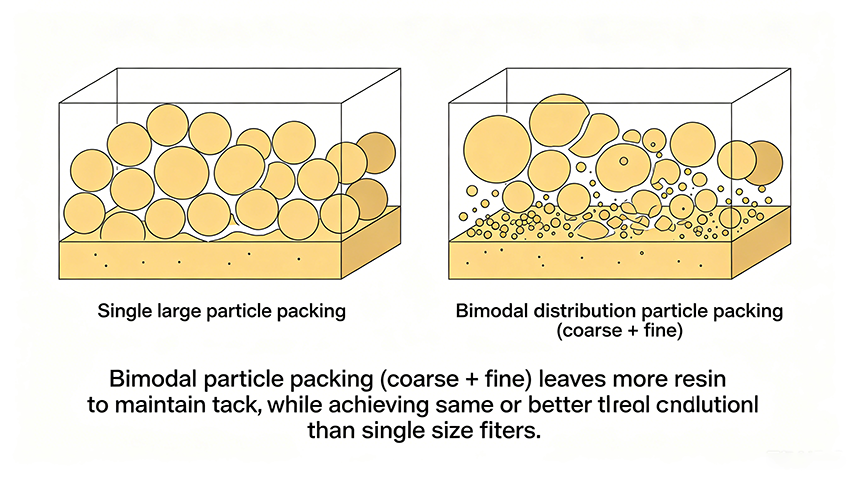

3. The solution – bimodal blending
Mix coarse and fine particles at specific ratios. Fine grains fill the voids between coarse particles, achieving closest packing. With the same total filler loading, bimodal grading increases particle contact points (better conductivity) or, alternatively, reaches the target conductivity with less total filler, leaving more continuous resin phase to preserve adhesion.
Aokai PTFE recommendation: For a 50 μm thick adhesive layer, use coarse particles of 20-30 μm blended with fine particles of 1-5 μm. This bimodal approach is the key to balancing properties.
Particle Morphology – Shape Matters Greatly

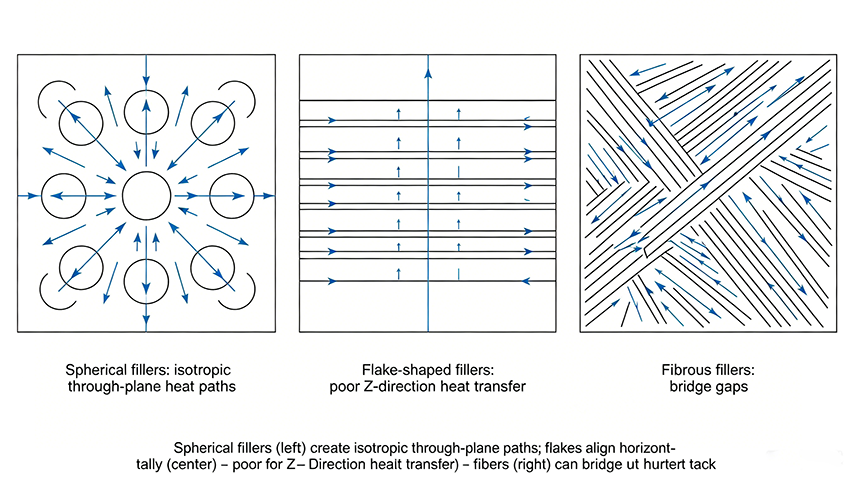

Non-spherical fillers align during coating and drying, affecting through-plane (Z-direction) thermal conductivity and adhesion.
1. Spherical or quasi-spherical fillers (e.g., spherical alumina)
Thermal effect: Isotropic. Particles stack easily along the thickness direction, good for through-plane heat dissipation.
Adhesion effect: Smooth surfaces do not obstruct resin flow. Preserves cold-flow and surface wetting. Among all shapes at equal loading, spheres retain the best adhesion – especially initial tack.
Balance advantage: Best overall compatibility. Maximizes Z-axis thermal gain with minimal adhesion loss.
2. Flaky fillers (e.g., boron nitride, graphene)
Thermal effect: High aspect ratio gives excellent in-plane conductivity, but flakes align parallel to the substrate, offering little through-plane improvement – poor for PTFE tapes that need vertical heat transfer.
Adhesion effect: Flakes act like partition films, blocking plastic flow and drastically cutting initial tack. Sharp edges cause stress concentration, reducing peel strength.
Balance disadvantage: Poor fit for Z-direction thermal needs, severely impairs inherent stickiness. Not recommended as the main filler.
3. Fibrous or irregular fillers
Thermal effect: High aspect ratio can build conductive networks at low loading.
Adhesion effect: Drastically increase adhesive viscosity, stiffen PSA via mechanical interlocking, and destroy tackiness. Sharp edges damage the adhesive-PTFE interface.
Verdict: Rarely used as the main filler; only minor addition as auxiliary bridging material.
Filler Loading – Finding the Percolation Sweet Spot

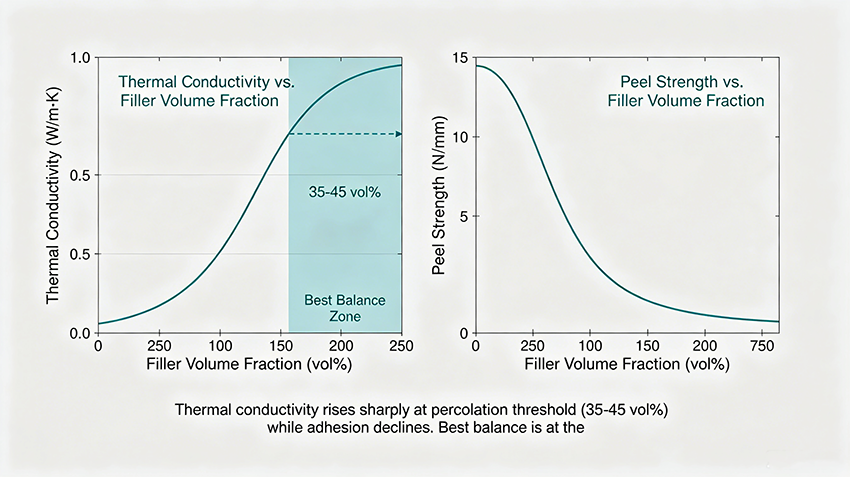

As filler loading increases, thermal conductivity rises slowly at first, then jumps sharply at the percolation threshold, then plateaus. Adhesion, however, declines continuously.
1. Low loading (<30 vol%)
Fillers are isolated islands in a continuous resin matrix. Thermal conductivity barely improves. Adhesion remains close to pure PSA. Safe zone for preserving tack, but thermal gain negligible.
2. Medium-to-high loading (30-60 vol%) – the critical window
Particles begin to touch and form conductive pathways. Thermal conductivity rises exponentially. Meanwhile, the continuous resin matrix becomes fragmented. Adhesive turns brittle; initial tack and peel strength drop sharply.
This is the optimization zone. The goal is to operate at the lower end of the percolation threshold – high enough to meet thermal specs, low enough to retain a continuous resin phase for acceptable adhesion.
3. Ultra-high loading (>60 vol%)
Dense particle packing slows further thermal gain (plateau). Resin cannot fill all gaps; voids form. Adhesive becomes dry, brittle, and nearly non-tacky. The tape becomes a fragile thermal film. Property balance is lost entirely.
Special note for PTFE tape (silicone PSA): Silicone has lower cohesion energy and poorer filler compatibility than acrylic. It tolerates lower maximum filler loading. Over-filling causes adhesive pulverization.
Aokai PTFE empirical data: For spherical alumina in silicone PSA, the percolation threshold is roughly 35-45 vol%. Optimal balance is achieved around 40-45 vol% with bimodal distribution. Above 55 vol%, adhesion becomes unacceptable for most applications.
Summary – The Three-in-One Balancing Formula
To achieve stable thermal conduction–adhesion balance in PTFE high-temperature adhesive tapes:
Use spherical coarse particles (20-30 μm) as the primary conductive skeleton – they provide through-plane conductivity with minimal adhesion loss.
Add fine particles (1-5 μm) to create a bimodal distribution – fills voids, reduces total filler needed, preserves resin matrix.
Keep total filler loading at the lower-middle range of the percolation threshold (around 40-45 vol% for spherical alumina in silicone PSA).
Limit flaky or fibrous fillers to <5 wt% if needed at all – they harm tack and offer little through-plane benefit.
The result: A thermally conductive PSA tape that actually sticks and lasts.
Aokai PTFE manufactures thermally conductive PTFE tapes using this bimodal spherical filler strategy. We can tailor thermal conductivity and adhesion levels to your application.
Final Takeaway
Improving thermal conductivity in PTFE adhesive tapes always fights against adhesion. The best compromise comes from spherical particles + bimodal size distribution + loading just past percolation. Avoid flakes and fibers unless your application specifically needs in-plane conductivity and can tolerate low tack.
For high-performance bonding with heat dissipation, thermally conductive PTFE tape is a proven solution. Contact Aokai PTFE for formulations matched to your thermal and peel requirements.
