As a leading manufacturer of PTFE coated fabric and related products, Jiangsu Aokai New Materials Technology Co., Ltd. brings you professional insights. While fiberglass cloth remains the most common base material for PTFE impregnation, many other substrates exist – each offering unique properties for specific high-performance applications.
Below we explore 7 alternative substrates, their process characteristics, advantages, and limitations.
Aramid Fiber (e.g., Kevlar®)
Process: Woven into fabrics or tubular structures, then impregnated with PTFE.
Advantages: Ultra-high tensile strength, excellent wear resistance, flame retardancy, and chemical inertness. Combines high strength with flexibility for oil‑free lubrication.
Limitations: Much higher cost than fiberglass; poor UV resistance.
Carbon Fiber
Process: Mostly made into braided packing, then impregnated with PTFE.
Advantages: High strength, high modulus, superior thermal conductivity (avoids heat accumulation), low thermal expansion coefficient.
Applications: Extreme conditions – high temperature, high pressure, high speed; semiconductor manufacturing equipment.
Limitations: High production cost; relatively high friction coefficient (improved after PTFE coating); inherently conductive – requires insulation treatment in some scenarios.
PBI (Polybenzimidazole) Fiber
Process: Woven into tubular structures, then impregnated with PTFE emulsion and sintered.
Applications: Strict high‑temperature protection and sealing in aerospace and military industries.
Limitations: Extremely high cost; limited stability in high‑temperature aerobic environments; only suitable for niche fields.
PBI fiber exhibits exceptional thermal stability – throughout its measurement temperature range, the fiber’s initial modulus remains constant. In inert gas or vacuum environments, even after 300 hours at 350°C, no significant aging effect occurs. When PBI fiber tubes are impregnated with PTFE emulsion through a multi-stage process (dipping, drying, baking, and sintering), the resulting anti-wear liner can withstand a continuous operating temperature of 290°C, instantaneous exposure up to 500°C, with weight loss under 5% at 315°C while maintaining excellent wear resistance. For applications such as aircraft engine clamps, traditional materials like EPDM, nitrile rubber, fabric-reinforced silicone rubber, and standard PTFE cannot meet these requirements – PBI/PTFE composites solve both high-temperature resistance and wear issues, significantly expanding application possibilities.
Porous Metal

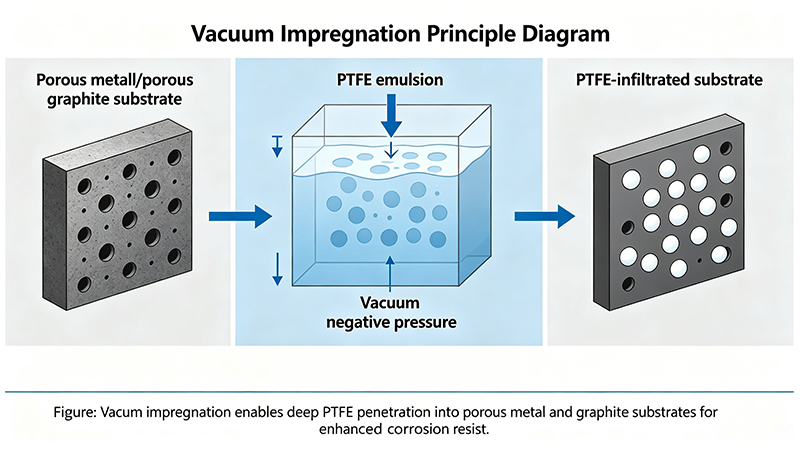

Process: PTFE dispersion liquid penetrates metal pores via vacuum impregnation, followed by high‑temperature sintering.
Advantages: Combines metal’s mechanical strength and dimensional stability with PTFE’s self‑lubricity and corrosion resistance.
Applications: Self‑lubricating bearings, piston rings, guide rails, and other mechanical parts.
Limitations: Strict requirements on metal porosity and pore size distribution to ensure proper PTFE impregnation.
Porous Graphite
Process: PTFE fills internal graphite pores via dedicated impregnation and plasticizing treatment.
Advantages: Forms impermeable graphite with excellent corrosion resistance – used in chemical heat exchangers and reactor liners. Also widely used in high‑temperature sealing gaskets.
Applications: Chemical processing equipment, high‑temperature seals.
Limitations: Graphite is brittle; strict control required to ensure uniform impregnation and strong interfacial bonding.
Asbestos (Legacy Substrate)
Process: Traditional impregnation substrate; asbestos fibers impregnated with PTFE to weave dynamic sealing parts.
Advantages: Once widely adopted in various sealing fields.
Limitations: Classified as a carcinogen – phased out or strictly restricted in most regions, gradually replaced by aramid fibers.
Ceramic Fillers
Process: Mixed fully with PTFE emulsion to form a composite slurry, then used to impregnate reinforcing substrates like fiberglass cloth.
Advantages: Precisely adjusts dielectric constant and dielectric loss – essential for high‑frequency, high‑speed copper clad laminates.
Applications: Electronics – PCB substrates for 5G and high‑frequency communications.
Limitations: Complex process control; requires uniform filler dispersion in PTFE.
Conclusion – Choose the Right Substrate for Your Needs
While fiberglass cloth remains the workhorse for PTFE coated fabric production, alternatives like aramid, carbon fiber, porous metal, and graphite offer specialized advantages for extreme conditions – from aerospace to semiconductor manufacturing.
When selecting a substrate for PTFE impregnation, consider:
Operating temperature and environment
Mechanical strength and wear requirements
Electrical conductivity or insulation needs
Cost and availability
As a trusted PTFE coated fabric manufacturer, Aokai provides customized solutions across PTFE conveyor belts, PTFE mesh belts, PTFE adhesive tape, PTFE film tape, and PTFE fiberglass tape.
