Walk into any solar panel factory. The laminator is running at 150°C, pressing EVA encapsulant between glass and backsheet. Without PTFE tape, molten EVA would ooze onto the heating platen and silicone diaphragm, creating a sticky mess that ruins the next panel and takes hours to scrape off.
That’s the obvious use. But there’s a less visible one: inside the finished module,PTFE tape wraps around busbars where they pass through backsheet openings, preventing high-voltage creepage. For 1500V systems (standard today), this insulation is a safety must.
Aokai PTFE supplies both types – process consumables and permanent insulation – with distinctly different requirements. Let’s walk through where PTFE tape goes in a PV module, and which properties matter for each spot.
Where PTFE Tape Is Used in Solar Module Production
Not one application – five.
Location
Role
Tape Type
Key Demand
Laminator edges
Catch overflowing EVA/POE
Fiberglass-backed PTFE with silicone PSA
Non-stick, peel clean, 150°C+
Busbar insulation (inside module)
Prevent short to backsheet/frame
Solid PTFE film (no glass)
Dielectric strength >8kV, <1% shrinkage
Junction box terminals
Insulate solder joints, fix wires
PTFE film or thin fiberglass
UL94 V-0, 85°C continuous, vibration resistance
Soldering mask (stringer/rework)
Temporary protection
Thin PTFE tape, silicone or premium acrylic
Solder-repellent, no residue after peeling
Coating mask (frame / junction box potting)
Mask off areas from paint/potting
PTFE tape with high initial tack
Clean release, no adhesive transfer
Laminator Edge Protection – Fighting EVA Stickiness
During lamination (145-165°C, 15-25 minutes), the EVA encapsulant melts and flows. Some inevitably squeezes out to the edges. If it contacts the metal heating plate or the silicone vacuum diaphragm, it bonds permanently.
How PTFE tape solves it
PTFE tape applied to these surfaces makes cured EVA peel off in one piece. Operators wipe the tape with a cloth between cycles, and a single application lasts weeks.
What to look for in a lamination tape
Substrate: Fiberglass-reinforced PTFE (0.13-0.18mm). Pure PTFE film tears too easily when scraping off cured EVA.
Adhesive: Silicone PSA only. Acrylic softens and oozes at 150°C, contaminating the laminator.
Heat shrinkage: Negligible at lamination temperature – tape must not curl or expose metal edges.
Low outgassing: Under vacuum lamination, volatiles from poor-quality adhesive can cause bubbles in the module. Total mass loss <1% is a good target.
From the factory floor: One module maker reported reducing laminator cleaning downtime from 45 minutes per shift to 5 minutes after switching to a premium fiberglass-backed PTFE tape with high-crosslink silicone adhesive. The tape cost more upfront but paid for itself in two weeks.

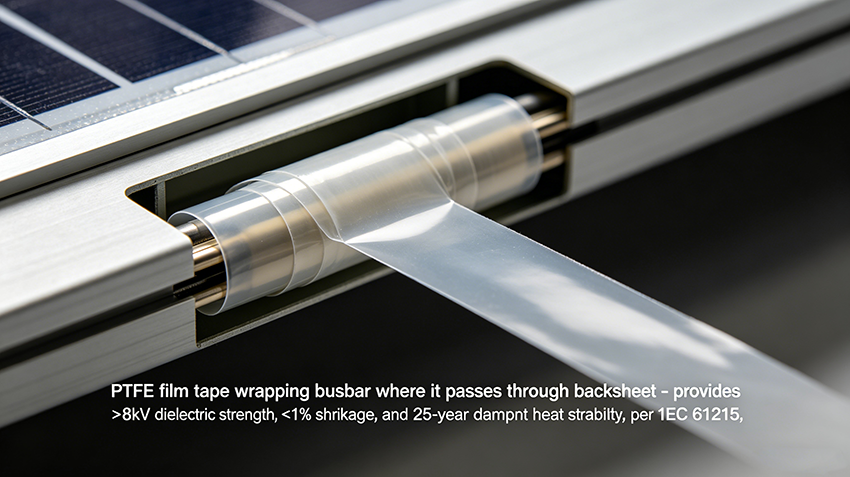

Inside the finished module, busbars (tinned copper ribbon) connect cell strings to the junction box. Where they pass through a slit in the backsheet, or bend near the aluminum frame, the insulation clearance can be tight. PTFE tape wraps around the busbar at these points.
This tape is not a consumable. It must last the module’s warranty life – 25 years or more – outdoors, under UV, temperature cycling (-40°C to +85°C), and damp heat (85°C/85% RH).
Critical specifications for busbar insulation tape
Must remain high after 1000-2000h damp heat aging (IEC 61215)
Total shrinkage ≤1% (ideally ≤0.5%)
Prevents backsheet stress or exposed busbar after thermal cycles
CTI 600V (PTFE natural)
No conductive carbon tracks under surface contamination
UV resistance (for double-glass modules)
Adhesive must not degrade from edge light penetration
Silicone PSA, not acrylic
Acrylic hydrolyzes under damp heat, losing adhesion and outgassing acetic acid
UL94 V-0 or VTM-0
Required for safety certification (UL 510)
Industry note: Some low-cost module makers use polyimide (Kapton) tape for busbar insulation. While polyimide has higher dielectric strength, it absorbs moisture and can lose insulation properties in damp heat. PTFE remains stable. For 1500V modules, PTFE is increasingly specified.

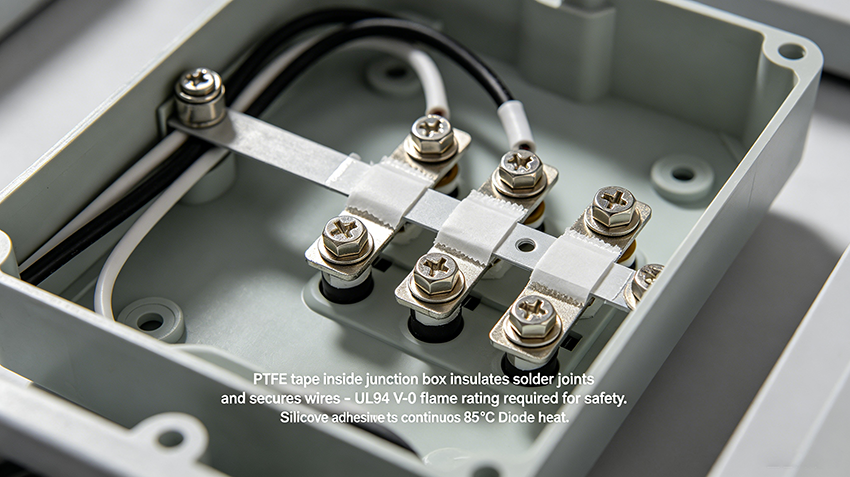

Junction Box Fixation & Insulation
Inside the junction box, the busbar tails solder to the diode/terminal block. PTFE tape serves two roles: insulation where bare conductors are close, and mechanical fixation – taping wires down prevents vibration fatigue.
Why flame retardancy is mandatory
The junction box is a potential ignition source if the bypass diode fails short. PTFE tape here must have UL94 V-0 rating. Also, it must handle continuous heat from the diode (typically 85-90°C) without creeping or losing adhesion.
Thin PTFE film tape (0.05-0.08mm) works well here because it wraps tightly around wires and terminals.
Soldering Mask & Temporary Protection
During tabbing and stringing, flux and molten solder can splatter onto cells, causing cosmetic defects or micro-cracks. PTFE tape temporarily covers cell edges or non-soldering areas.
Different requirements – no long-term aging needed
Just high heat resistance (brief exposure to 300°C+ from soldering iron), solder-repellent surface, and zero residue after peeling. Even an acrylic adhesive may work here since exposure is short and temperatures are high – but silicone is safer for any heat over 200°C.
Quick Selection Cheat Sheet
Application
Substrate
Adhesive
Key Test to Request
Laminator edge protection
Fiberglass PTFE 0.13-0.18mm
Silicone PSA (260°C rated)
Outgassing mass loss <1%
Busbar insulation (permanent)
Solid PTFE film 0.08-0.13mm
Silicone PSA (high crosslink)
IEC 61215: 1000h damp heat + thermal cycling + UV
Junction box insulation
PTFE film 0.05-0.08mm
Silicone PSA, UL94 V-0
Flame rating, dielectric strength
Soldering mask
Thin PTFE film or tape
Silicone or premium acrylic
No residue after peel test at 200°C
Final Takeaways
Two very different PTFE tape categories serve the PV industry.
Process consumables (laminator protection, soldering mask): focus on non-stick, easy cleaning, and short-term heat resistance.
Silicone PSA is non-negotiable for any tape that will see 150°C+ or 25-year outdoor life.
Aokai PTFE supplies both categories with test documentation. For busbar insulation, we provide damp heat aged dielectric strength data. For lamination tape, we offer outgassing analysis and field life references.
