PTFE Tape in Medical Devices: Applications, Standards, and Compliance

In operating rooms, dental clinics, and medical device manufacturing cleanrooms, PTFE high-temperature tape is everywhere – but often hidden. It protects sterilization trays from adhesion, coats guidewires for smoother navigation, and even forms the basis of implantable vascular grafts.

Thanks to its chemical inertness, low friction, and thermal stability, PTFE is one of the most widely used fluoropolymers in medical applications. But how do you know which PTFE tape is suitable for which medical use? The answer depends on contact type (direct patient contact vs. indirect), regulatory standards (FDA, ISO 10993), and application environment.

Aokai PTFE has supplied PTFE materials for medical applications for years. This article categorizes medical applications by contact level, explains core regulatory standards, and provides practical selection guidance.

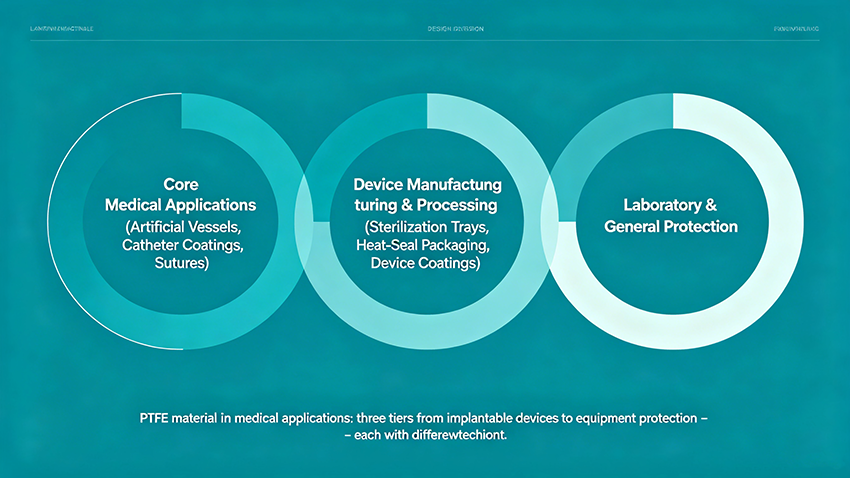

Three Medical Application Tiers by Contact Level

Core Medical Applications (Direct/Indirect Patient Contact)

PTFE’s biocompatibility has been established over decades of clinical use. PTFE received FDA approval for vascular applications in the 1960s-, and expanded PTFE (e-PTFE) has since become a standard material for implantable devices.

Key insight: For implantable applications, PTFE is not used as a tape but as raw material processed into specific forms (e.g., e-PTFE vascular grafts, patches). Aokai PTFE supplies PTFE raw materials that device manufacturers further process for these applications.

Medical Device Manufacturing & Processing Applications

This is where PTFE high-temperature tape is most directly used in its tape form.

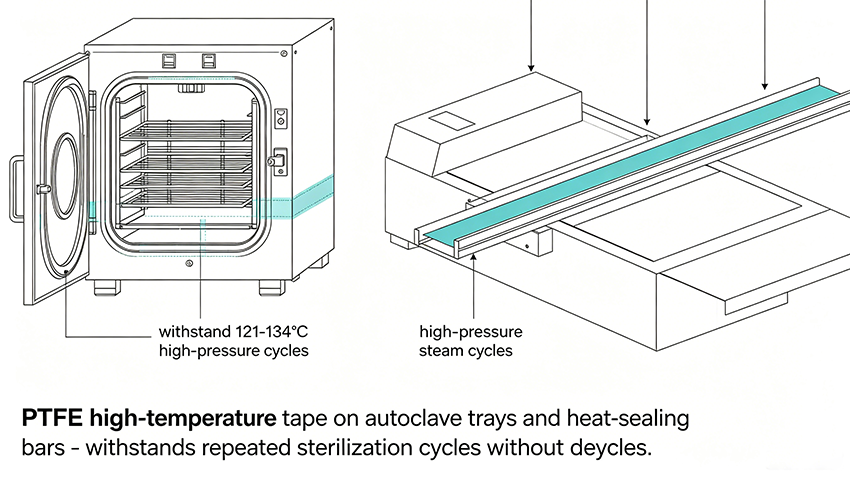

1. Sterilization Equipment Protection

PTFE-based tapes withstand common sterilization cycles including steam autoclave, EtO, and many chemical sterilants

2. Heat-Seal Packaging

In medical blister packaging and IV bag sealing lines, PTFE tape is mounted on heating bars to achieve fast, clean sealing without adhesive transfer to the pouch material. PTFE film tapes maintain dimensional stability and thermal performance across -73°C to 260°C, preventing polymer transfer during pouch closure-.

3. Surgical Instrument Surface Treatment

Aokai PTFE supplies PTFE high-temperature tape for medical packaging equipment and sterilization tray protection. Our tapes are available with silicone pressure-sensitive adhesive, which withstands repeated autoclave cycles without adhesive residue.

Regulatory Standards for Medical-Grade PTFE

1. FDA 21 CFR 177.1550 – Foundational Compliance

FDA 21 CFR 177.1550 is the foundational U.S. Food and Drug Administration regulation for fluoropolymer resins. Compliance ensures the PTFE material is safe for repeated use in contact with food – and by extension, is a common reference standard for medical-grade PTFE.

Important distinction: FDA does not approve raw materials; it approves finished medical devices. When a supplier states that PTFE is “FDA approved,” they typically mean that the material complies with 21 CFR 177.1550 – which is actually a food contact standard-. For medical devices, final approval depends on the device manufacturer’s full submission to FDA.

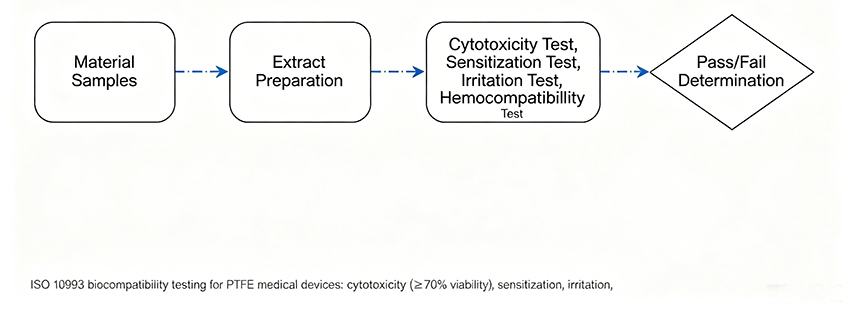

2. ISO 10993 – Biocompatibility Testing

For direct patient contact applications, PTFE must be tested per ISO 10993 series:

PTFE materials are tested to ensure no cell toxicity, no sensitization, and no systemic toxicity reactions when in contact with human tissue.

Summary & Selection Guide

In summary, PTFE high-temperature tape serves three tiers of medical applications. For core medical applications (direct patient contact), PTFE is used as a raw material (not as tape) with device-level FDA approval and ISO 10993 biocompatibility testing. For medical device manufacturing and processing – sterilization equipment protection, heat-seal packaging, and instrument surface treatment – PTFE tape can be used directly, with silicone PSA recommended for autoclave environments.

Regulatory compliance starts with FDA 21 CFR 177.1550 for material safety, but final device approval requires manufacturer submission. For critical patient-contact applications, always verify biocompatibility testing on the finished product, not just the raw material.

Need PTFE tape or raw material for a medical application? Aokai PTFE supplies medical-grade PTFE products. Contact us with your application details, intended sterilization method, and regulatory requirements.
