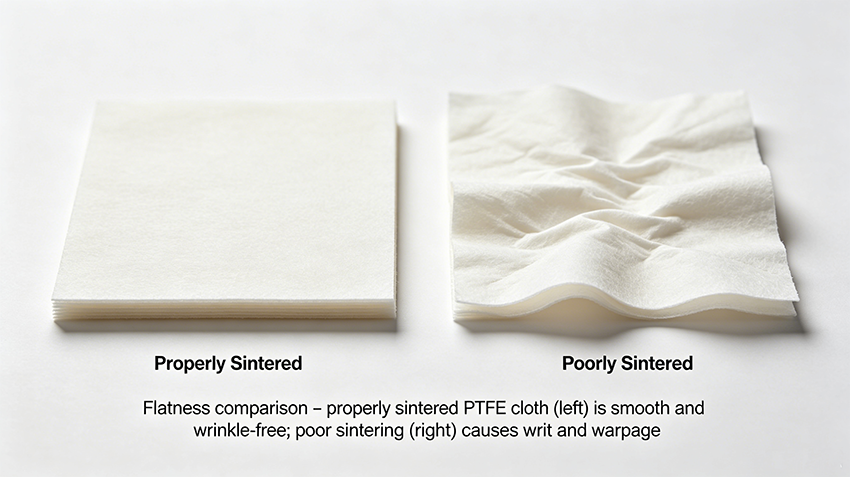

Sintering is the critical step where PTFE particles melt, flow, and fuse into a continuous film. But it is also the stage where flatness is most easily lost. Uneven tension, rapid temperature changes, or inadequate restraint can cause irreversible wrinkles, wavy edges, and warpage that cannot be corrected afterward.
The core principle for maintaining flatness is precise control over tension, temperature, and restraint methods – enabling coordinated shaping of the fiberglass substrate and molten PTFE coating.
Aokai PTFE (PTFE fiberglass cloth) has developed robust sintering processes to ensure consistent flatness. This guide covers five critical control points for stable flatness in mass production.

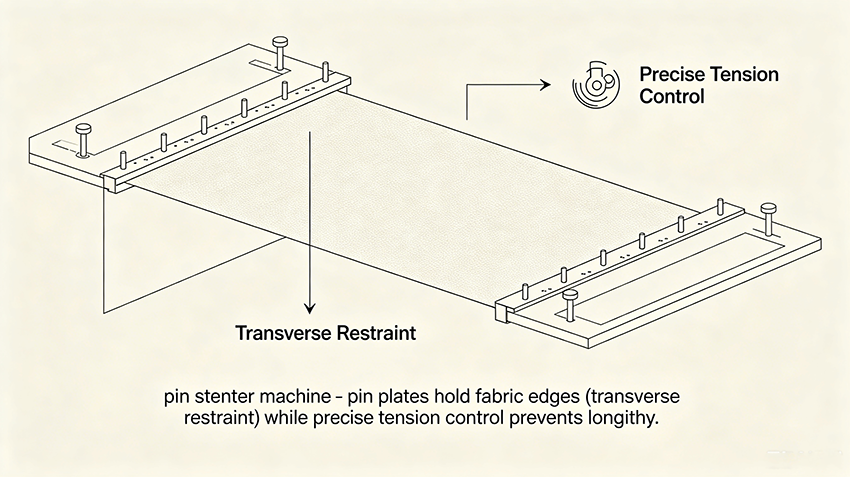

Equipment Restraint – Stenter Machine Is Mandatory
This is the core solution to prevent weft shrinkage and wavy selvedges. A pin stenter (or clip stenter) must be installed inside the sintering furnace.
1. Crosswise shaping
Pin plates pierce fabric edges. By adjusting the track width of conveyor chains, mild transverse tension is applied – or at minimum, the original fabric width is maintained to counteract thermal shrinkage stress of the substrate under high heat. Without this restraint, the fabric width shrinks and edges become wavy.
2. Longitudinal control
Precise speed differential between front and rear rollers plus closed-loop tension control deliver ultra-low and steady longitudinal tension:
Excessive tension – cracks the coating or triggers post-cooling shrinkage and warpage
Insufficient tension – causes lengthwise wrinkles (the fabric "bunches up")

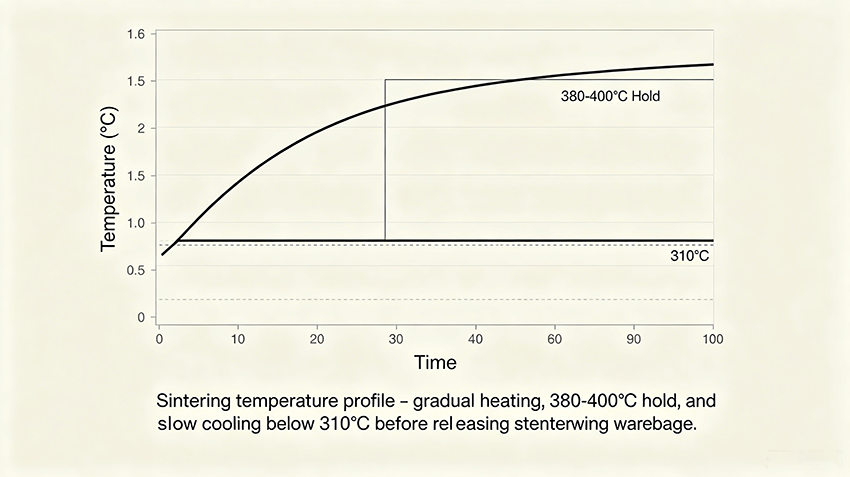

Scientific Temperature Profile – Gradient Heating and Slow Cooling
A gradient curve of gentle heating, full melting, and slow cooling is required to eliminate thermal shock and stress-induced warpage.
1. Heating zone
Temperature rises slowly around the PTFE melting point (327°C) to balance internal and surface fabric temperature. Local overheating or rapid temperature surge leads to uneven shrinkage and permanent creases. The goal is to allow heat to penetrate uniformly through the fabric thickness before full melting begins.
2. Sintering holding zone
Constant temperature maintained at 380-400°C for sufficient dwell time. This:
Fully melts PTFE particles into a continuous film
Releases residual internal stress of fiberglass under restrained flat condition
Ensures complete fusion and densification
3. Cooling zone – frequently overlooked, yet critical
This is the stage where warpage most commonly occurs. Slow cooling is required while retaining stenter restraint until temperature drops below the PTFE crystallization point (approx. 310°C).
Critical rule: Rapid forced air cooling creates mismatched shrinkage between coating and substrate – resulting in persistent warping or curling selvedges that cannot be flattened afterward. Keep the fabric restrained until the PTFE has fully crystallized and locked into its final shape.
Substrate Pretreatment and Coating Uniformity
Flatness during sintering depends on what happens before the fabric enters the furnace.
1. Pre-shrinking of base fabric
Before PTFE impregnation, fiberglass cloth undergoes high-temperature dewaxing and pre-shrinking to remove weaving residual stress. This drastically reduces secondary shrinkage during sintering and lays the foundation for superior flatness.
Aokai PTFE note: Without pre-shrinking, the fiberglass will try to contract during sintering – fighting against the stenter restraint and causing uneven stress distribution.
2. Uniform coating thickness
The PTFE impregnated layer must feature consistent thickness across the entire fabric. Uneven coating causes differential melting timing – thin areas melt faster than thick areas – generating stress ripples similar to orange peel texture and ruining flatness.
Accurate regulation of impregnation, doctor blade coating, and squeeze rolling processes is essential.
Even small thickness variations (0.01mm) can cause visible surface defects.

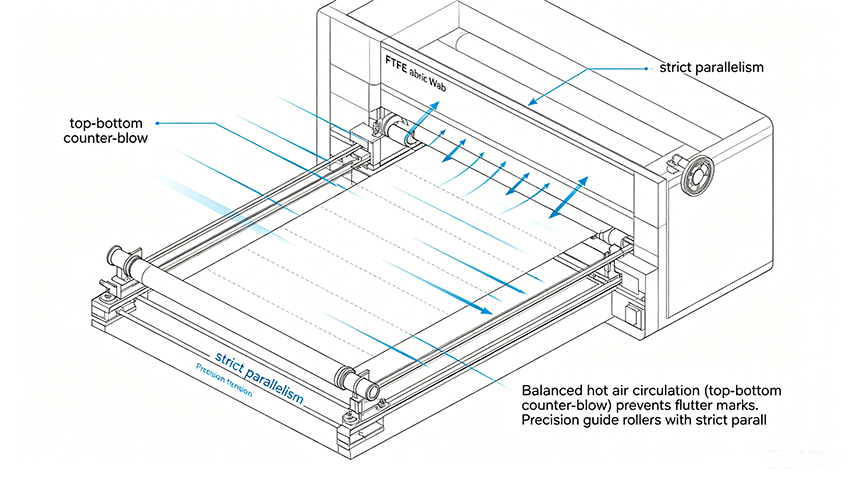

Airflow Arrangement and Precision Guide Rollers
1. Hot air circulation design
Adopt top-and-bottom counter-blow or uniform circulating hot air inside the furnace to avoid single-side strong airflow directly hitting the fabric – which causes flutter marks. Stable air cushion support in horizontal ovens prevents fabric sagging over long suspended spans.
2. Strict parallelism of rollers
All guide rollers and tension rollers must maintain ultra-high parallelism and stay clean without sticky residues:
Tiny fabric deviation leads to unequal tension on both sides and unilateral wrinkles
An automatic edge correction system shall be equipped
Regular cleaning prevents adhesive buildup that causes localized tension changes
Summary – The Flatness Formula
Perfect flatness is not achieved by external pressing force. Instead, under precise planar restraint of the stenter machine, uniform temperature and tension melt and integrate PTFE coating with fiberglass substrate into a smooth composite, with all residual stress fully released through gradual cooling.
Deviation in any single process link will eventually manifest as uneven fabric surface.
Process Step
Flatness Requirement
Failure Mode
Substrate pretreatment
Pre-shrunk, stress-free
Secondary shrinkage during sintering
Coating
Uniform thickness
Differential melting → orange peel
Stenter restraint
Pin plates, controlled width
Weft shrinkage, wavy edges
Tension control
Low, steady, closed-loop
Wrinkles (too low) or warpage (too high)
Heating zone
Gradual, balanced
Local overheating → permanent creases
Holding zone
380-400°C, sufficient dwell
Incomplete fusion
Cooling zone
Slow, restrained below 310°C
Warpage, curled edges
Airflow
Balanced, no direct impingement
Flutter marks
Rollers
Parallel, clean
Unilateral wrinkles
Aokai PTFE controls all these parameters to deliver PTFE cloth with guaranteed flatness. For applications requiring ultra-flat fabric (e.g., PCB laminating, solar laminators), we offer tighter flatness specifications and additional flattening processes.
