Microwave heating is fast and efficient, but it poses unique material challenges. Metal components cause arcing. Many plastics melt or degrade. Sticky foods burn onto surfaces.
PTFE-coated fiberglass fabric – known as PTFE high-temperature fabric – solves all three. It lets microwaves pass through without absorbing energy (no self-heating), withstands 260°C continuously, and nothing sticks to its surface.
Aokai PTFE has supplied PTFE fabric for microwave applications across food processing and industrial equipment. Below we walk through where it goes, why it works, and how to select the right grade.
Food Microwave Processing – Kitchen & Commercial
In food microwaving, PTFE fabric serves as a reusable, non-stick, microwave-safe interface between food and the appliance.

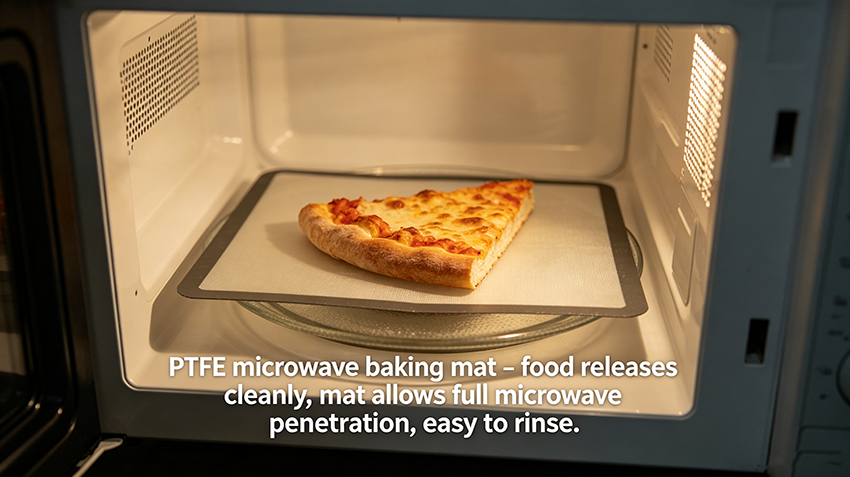

1. Microwave baking and steaming mats
Laid directly on turntables or baking trays. Perfect for pizza, bread, meat, and vegetables. Prevents sticking, allows even microwave penetration, and wipes clean in seconds. Replaces parchment paper.

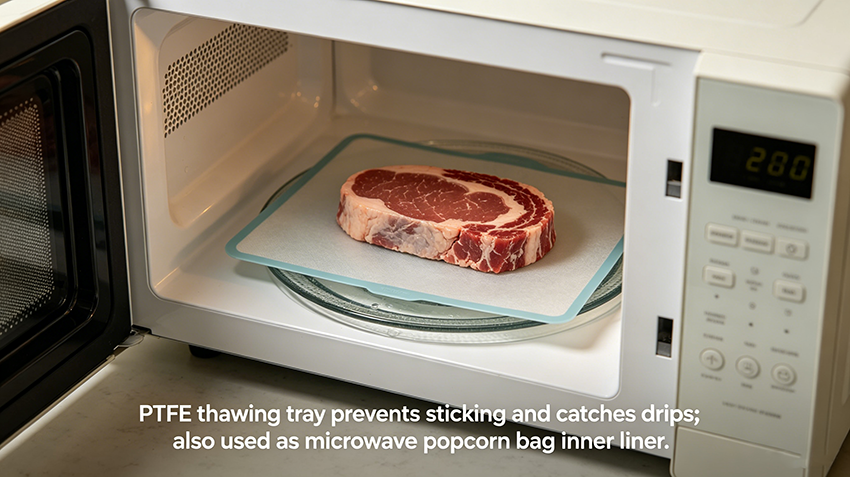

2. Thawing and heating tray mats
Used under meat, seafood, or frozen meals. Keeps food from sticking to the container and absorbs excess liquid, keeping the microwave clean. Often paired with microwave thawing boards.
3. Microwave puffing and drying base mats
For prawn crackers, rice cakes, fruit chips, and vegetable crisps. The open mesh or solid fabric allows moisture vapor to escape while holding the product. Non-stick surface ensures intact removal after puffing.
4. Inner liner for microwave popcorn and roasting bags
High-end microwave popcorn bags and chicken roasting bags use PTFE-coated fabric or composite film as an inner layer. It resists hot oil and grease, prevents burnt adhesion, and ensures even heating.
Market note: Many branded “microwave crisper” liners are PTFE-coated fiberglass. They last for years of home use and hundreds of cycles in commercial kitchens. Always check that the product is labeled food-grade and FDA compliant.
Industrial Microwave Equipment – Drying, Sterilization, and Processing
Industrial microwave systems run at higher power and longer cycles. PTFE fabric here is not a mat – it is a conveyor belt, a lining, or a separator.

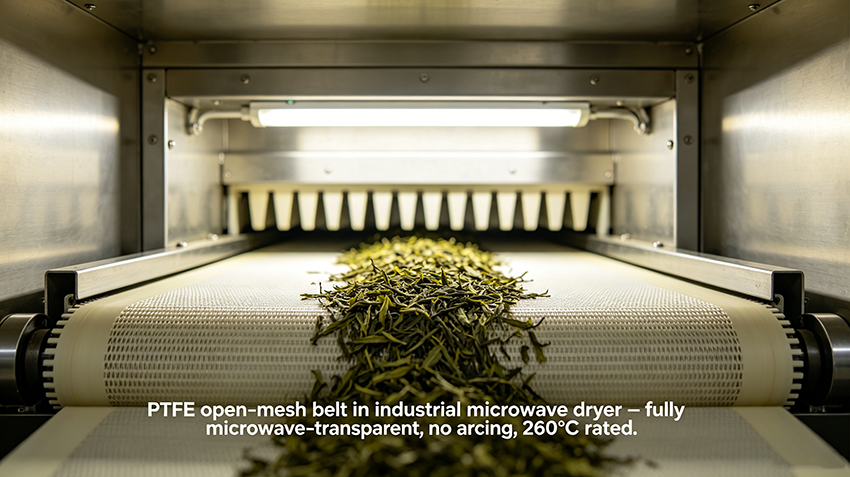

1. Conveyor belts for microwave drying and sterilization
Used in industrial microwave dryers for food, herbs, tea leaves, timber, and paper. The belt must be fully microwave-transparent. Metal mesh belts cause arcing. PTFE fabric – either open mesh or solid – transmits microwaves without energy loss or arcing, and it withstands continuous 260°C operation.
2. Lining fabric for continuous microwave puffing and baking lines
Semi-finished products (prawn crackers, rice puffs, etc.) are carried directly on PTFE fabric belts through continuous microwave ovens. The non-stick surface prevents tearing or adhesion, and the heat resistance extends belt life.
3. Separating fabric for microwave rubber vulcanization and sheet lamination
During microwave vulcanization of rubber or composite sheet pressing, PTFE fabric is sandwiched between the raw material and the mold. It acts as a non-stick separator, releases easily after curing, and does not block microwave energy.
4. Inner lining for microwave chemical reactors
Used in laboratory and production-scale microwave digesters, extraction reactors, and synthesis systems. PTFE fabric serves as inner lining, sealing gasket, or heat-insulating non-stick layer. It resists strong acids and alkalis, does not contaminate reactions, and allows microwaves to penetrate uniformly.
Technical note from Aokai PTFE: One common concern is whether PTFE fabric can withstand the aggressive chemical environment inside microwave digesters (concentrated nitric acid, HF, etc.). Standard PTFE-coated fiberglass works well for most applications, but for HF or extremely high-temperature acid mixtures, consider pure PTFE film laminates or ask us about our chemical-resistant grade.
Laboratory and General Auxiliary Applications
Small-scale but important uses in labs and home kitchens.

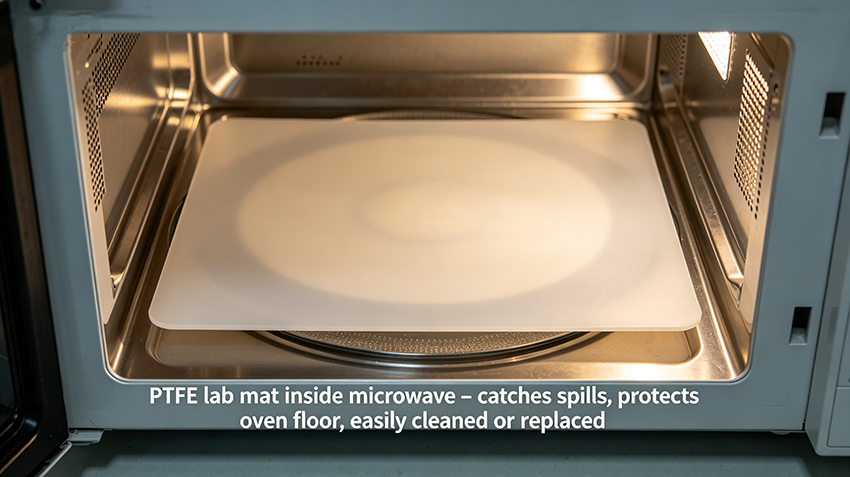

1. Microwave oven cleaning mats
Custom-cut PTFE mats placed on the oven floor or turntable catch overflowing soup, grease, and splatters. Instead of scrubbing the enamel interior, you simply lift out the mat and rinse or wipe it. Burnt-on residue does not stick.
2. Heat-resistant handling pads for microwave operations
PTFE fabric sewn into small pads or holding cloths for removing hot microwave containers. Note: these provide heat resistance but limited thermal insulation – they are not a substitute for proper heat-resistant gloves for very hot items.
3. Lab bench mats for microwave experiments
Placed under glassware during microwave sample drying, reagent heating, or digestion. Protects the bench from corrosive spills if a vessel breaks, and prevents glass from sticking to the countertop.
Core Advantages and Selection Tips for Microwave Use
Property
Why It Matters for Microwave Heating
Microwave transparency
No energy absorption – the fabric does not heat up, and no arcing
High temperature resistance
Operates continuously up to 260°C without melting or degrading
Non-stick surface
Food, resin, or chemical residues release easily – no scraping
Chemical inertness
Resists acids, alkalis, and solvents in reactor and laboratory applications
FDA grades available
For direct food contact – microwave mats, liners, and dryer belts
What to specify when buying:
For food contact: Request FDA 21 CFR 177.1550 compliance documentation.
For industrial microwave conveyors: Specify open mesh construction for airflow (if drying is the goal) or solid fabric for full support.
For chemical reactors: Confirm resistance to your specific solvent or acid – standard PTFE fabric is excellent for most, but HF requires a special grade.
Operating temperature: Stay below 260°C continuous; brief excursions to 280°C may be acceptable but test first.
Aokai PTFE offers microwave-grade PTFE fabric in thicknesses from 0.08mm to 0.40mm, solid and mesh, with FDA or chemical-resistant options.
Final Summary
PTFE high-temperature fabric is a uniquely suited material for microwave heating because it does not absorb microwaves, withstands high heat, and repels sticking. From kitchen microwave mats to industrial dryer belts to chemical reactor linings, the applications are broad.
The key is matching the grade – food-grade for cooking, heavy-duty open mesh for industrial drying, chemically resistant for reactors – and always operating within the 260°C continuous limit.
For custom sizes, FDA documentation, or help selecting the right PTFE fabric for your microwave application, contact Aokai PTFE.
